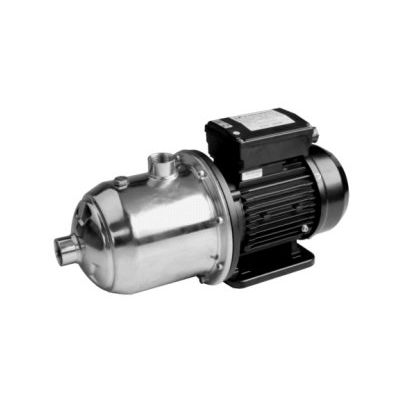

Self-priming Horizontal MMultistage Pumps-SBM
Technical Features SBM series self-primming horizontal multi-stage centrifugal pumps, the pump casing, impeller, inlet/outlet section of pumps, shaft are made of stainless steel, mechanical seals, with features of exchangeable components, stable quality, small size, light weight, corrosion resisting, high efficiency, long working life, beautiful appearance and safe use.
It`s widely used to convey industrial liquid: such as mineral water, soft water, pure water, light oil, circulation and boosting for other weak chemical liquid. Water treatment; Industrial cleaner and dishwasher; Pressure boosting for the water on processing line, garden sprinkler; Heating and cooling for the water on industrial processing line; Air-conditioning system; Air freshening, heater device(soft water); Water supply and boosting(drinking waterã€weak. chlorine water) Fertilization/metering system
Motor: 2-pole induction motor, aluminum alloy motor case, single phase with thermal protector, Class F or Class B, Protection IP54, Continuous duty.
Operation Condition:
- Liquid Temperature:
- Low temperature type: -20 cent. degree to +10 centi. degree
- Standard type: -10 cent. degree to +70 cent. degree
- High temperature type: +70 cent. degree to +104 cent. degree
- Ambient Temperature: up to +50 cent. degree
- Max. Working Pressure: 10 bar
- Maxi. Suction pressure is limited by the max. operation pressure.
