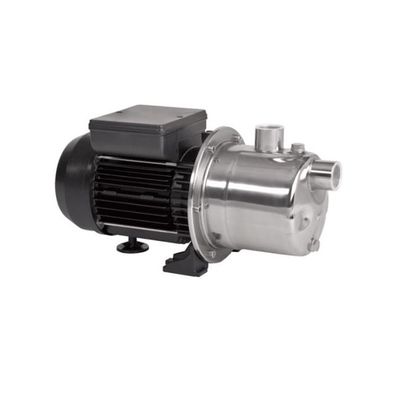

Nocchi Jetinox - Self-Priming Stainless Steel Pumps

• Pump Type - Self Priming Centrifugal
• Max Flow Rate - 4.8M³H
• Max Head - 50M
• Max Temp - 50°C
• Max Viscosity - 5 cst
• Max Solid Passage - 0mm
• Self Priming - Y
• Pump Materials - AISI304
• Inlet/Outlet Sizes - 25mm to 38mm
• Drive - AC Electric
• Max Suction Lift - 8M

NOCCHI JETINOX Self-Priming Stainless Steel Pumps

• Flow Rate Up to 80 l/min
• Head (Pressure) Up to 50 metres
• Sizes Available 1” & 1 1/4”
• Drive Options Electric Motors
• Operating Temperature Up to 50°C

The JETINOX pump range is only suitable for clean water.

Common applications include; extracting water from a well, lifting water that contains large amounts of air or gases, boosting water pressure, garden use or jet washing. Pumped fluids must be clean or slightly dirty and free of solid or abrasive particles.

The largest self priming JETINOX pump models are capable of producing pressures up to 5 bar and flow rates up to 80 l/min

Motor options include 230V single phase 50Hz and 230V/400V three phase 50Hz, other voltages and 60Hz motors are available on request.

• Suitable for drinking water transfer
• Stainless steel pump body and shaft
• Technopolymer impeller and diffuser
• Horizontal close coupled stainless steel self priming jet pump
• Can perform high suction lifts – Up to 7 metres with foot valve
• Compact design
• Suitable for continuous operation
• Suitable for clean or slightly dirty fluids without solids or abrasive particles
• Max. liquid temperature 50 C°
• BSP connections as standard
• Motor options include; 230V/1Ph/50Hz and 230V/400V/3Ph/50Hz, other voltages and 60Hz available on request
• IP44 motor protection – class f insulation

• Domestic water boosting systems
• Potable water
• Water lifting and distribution
• Pressurization systems
• Wells
• Clean water only without solids
