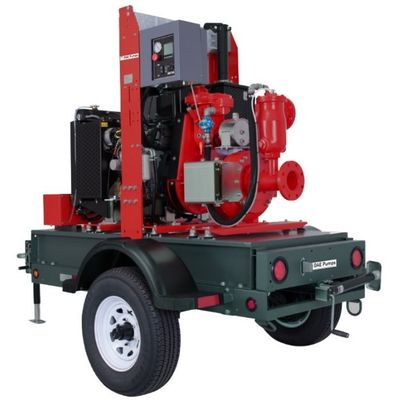

DAE Appalachian - Model 40 -Self-Priming Surface Pump - 4 Inch / 1230 GPM /49 HP
DAE Pumps Appalachian 40 Self-Priming Surface Pump is a heavy-duty centrifugal dewatering self-priming pump with a 4-inch discharge. They provide a maximum flow rate of up to 1230 GPM with their 49 HP diesel engine. The Appalachian 40 is capable of automatically priming to 24.6-feet of suction lift from dry and can pass solids up to 3-inches. These heavy-duty pumps extend a range of industries from applications like dewatering mines and construction sites, removing floodwater, and a variety of other municipal applications. The Appalachian pump provides the non-clogging performance, reliability, and ease of use you need.
The Appalachian 40 surface pumps comprise of an air separator unit and a vacuum pump, offering rapid automatic priming. Even with suction heights of several feet, these tools rapidly evacuates the air from the suction pipe and starts to pump. In addition, the semi-open impeller is suitable for pumping liquids with solids in suspensions.

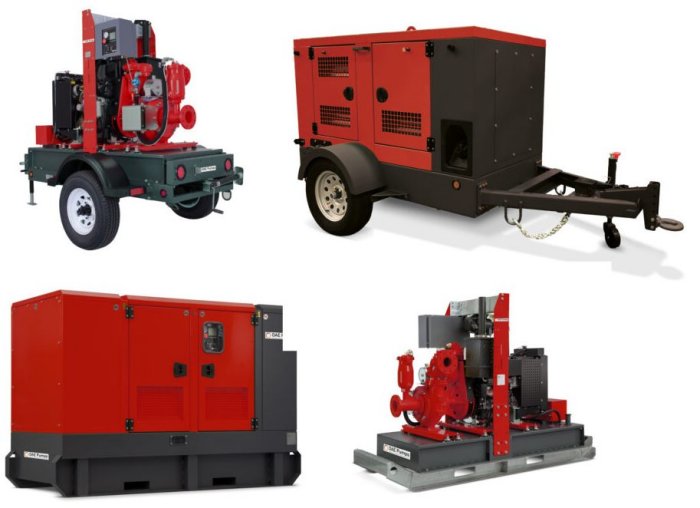

The Appalachian 40 is part of the Appalachian Series of self-priming surface pumps, which offer a variety of sizes, flow rates, speeds, and more to match your needs.
- Pump: High efficiency: 70% (B.E.P.)
- Rapid “dry” priming: Up to a height of 24.6 ft (7.5 m)
- High resistance: Resistant to abrasive liquids and turbid sandy waters
- Semi‐open impeller: Solids handling up to 3” (76 mm)
- Diaphragm vacuum pump: Oil-free suitable for dry running: no contamination of the environment
- Mechanical shaft seal in oil bath: It allows the “dry running” operation of the pump
- Wear plate: Cast iron wear plate that is easily replaceable
- Easy maintenance: Hinged cover for direct access to the impeller (without lifting devices). Link-belt quick to replace on the field.
- Discharge Size: 4″
- Max Volume: 1,230 GPM (280 m³/h – 4,670 l/min)
- Max Head: 164 ft (50 m)
- Max Volume Eff: 1000 GPM (220 m³/h – 3,670 l/min)
- Max Efficiency: 70%
- Impeller Type: Semi-Open, 2 Vane
- Solids Handling: 3″ (76 mm)
- Construction Site
- Mining
- Industrial
- Municipalities
- Dewatering
- Civil Works
- Agricultural
- Oil & Gas
- Flood Controls
