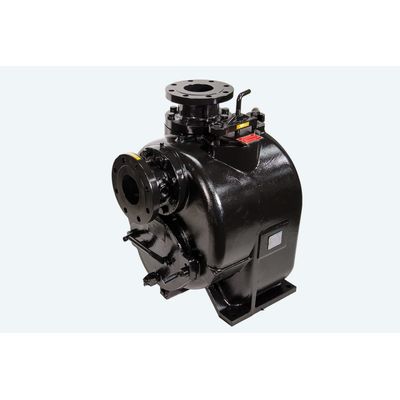

Ebara - Model EFQU/EFQT -Self-Priming Trash Pump
EBARA EFQ series pumps are available in a wide variety of materials and sizes to handle solids and light slurries efficiently and effectively. The large volute allows for quick priming even with the casing only partially filled and an open suction line.
Most popular related searches
self-priming trash pump
tungsten carbide
wear plate
sewage sludge
trash pump
sewage sludge dewatering
self-priming pump
slurry dewatering
pressure seal
pressure reducer
- Large solids handling capabilities prevents clogging – 3″ solids handling (EFQT), 1.25″ solids (EFQU)
- Robust cast iron casing with ductile iron impeller standard
- Easy maintenance – Removable cover plates and rotating elements for quick inspection and cleaning of the pump without having to detach from the piping
- Backside pump-out vanes reduce pressure on the seal and exclude solids from the seal area
- Multi-vane, semi-open, high efficiency impellers
- External shimless wear plate adjustment
- Easy removal cover plates and rotating element
- Cartridge Seals with Tungsten Carbide/Tungsten Carbide faces; design allows for quick replacement and ease of installation
- Alternate construction materials available on request including 304SS, 316SS and CD4 MCU
- Diesel engine operation, trailer or skid mounted
- Discharge Size: 2 to 12 inch
- Range of HP: 1 to 125 HP
- Capacity: 30 to 6700 GPM
- Head: 10 to 210 Ft.
- Max. solid diameter: 3″
- Max. liquid temperature: 160°F (70°C)
- Suction Size: 1 1/4″ to 1 1/2″ NPT thread
- Discharge Size: 1″ NPT thread
- Range of HP: 2 to 5 HP
- Capacity: 5.5 to 66 GPM
- Head: 98 to 245 Ft.
- Max. working pressure: 125 PSI (9 Bar)
- Temperature: 212°F (100°C)
- Liquid: clean water
- Water
- Wastewater
- Sewage
- Slurry
- Irrigation
- Dewatering
