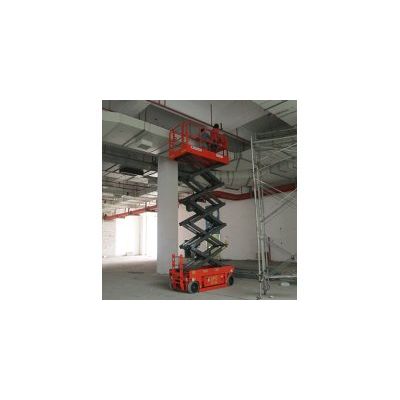

Sinoboom - Model GTJZ1012 GTJZ1012 -Self-Propelled Hydraulic Scissor

Standard technical features

• Self-propelled
• Can be drived at full height
• Automatic braking system
• Proportional controls
• Automatic pothole protection
• Self-lock gate on platform
• Non marking tyre
• Emergency stop button
• Emergency lowering system
• Cylinder holding valve
• Tilt sensor with alarm
• All Motion Alarm
• Horn
• Hour meter
• Safety brackets
• Forklift pockets
• Foldable guardrails
• Extendable platform
• Charger protection
• Flashing beacon
• 2WD

Options available

• Overload sensor with alarm
• AC power on the platform
• Platrom work lights
• Airline to the platfrom
• 4*225Ah Battery
• Leakage protection
• Portuguese manuals
• Portuguese Warning marks
• Onboard diagnostic system

Benefit for the applications:

• Roll-out platform provides spacial-wise workspace
• Folded guardrails helps easy access to narrow doorway at job site or for transportations like container or elevator
• 7 indoor models are available between working height at 8m to 12m
• Compact design with 0 turn radius facilitates working in confined area
• 25% gradeablility for driving on slopes
• Swing-out tray on scissis for easy maintenance
• Portable board diagnosis helps troubleshooting,also making the oprator easier to reset
• the operation conditions

Standards compliance

• AS1418-2011, EN280-2010, JG/T 5100

Dimensions

Platform height max.: 33 ft (10 m)
Working height max.: 39 ft (12 m)
Platform extended: 3 ft (0.9 m)
Length - stower: 7 ft 8 in (2.39 m)
Width - stower: 3 ft 8 in (1.15 m)
Height - folding guardrails: 8 ft 1 in (2.48 m)
Height - rails folded: 6 ft 1 in (1.86 m)
Height - fixed rails: 8 ft 1 in (2.48 m)
Wheelbase: 6 ft (1.85 m)
Ground clearance: 3 in (0.1 m)
Platform size (L*W*H): 7 ft 4 in*3 ft 8 in*3 ft 6 in (2.25 m*1.15 m*1.1 m)

Productivity

Max. platform occupancy: 2 (indoor) 1 (outdoor)
Lift capacity: 705 lbs (320 kg)
Lift capacity - extension deck: 265 lbs (120 kg)
Drive speed - stowed: 0~2.0 mph (0~3.2 km/h)
Drive speed - raised: 0~0.5 mph (0~0.8 km/h)
Gradeability: 25%
Turning radius - inside: 0 ft (0 m)
Turning radius - outside: 7 ft 7 in (2.35 m)
Raise / Lower speed: 55 /42 s
Controls: Proportional
Drives: Dual front wheel
Brakes: Dual rear wheel
Tire size (solid non-marking): 15 in * 5 in (380 mm * 125 mm)

Power

Power source: 24V DC (4*6V, 225Ah batteries)
Hydraulic system capacity: 4.76 gal (18 L)
Power: 3 KW

Weight

Indoor: 5247 lbs (2380 kg)
Indoor & outdoor general: 5666 lbs (2570 kg)
Standards Compliance: CE/ ISO/ ADR/ ARAMCO
