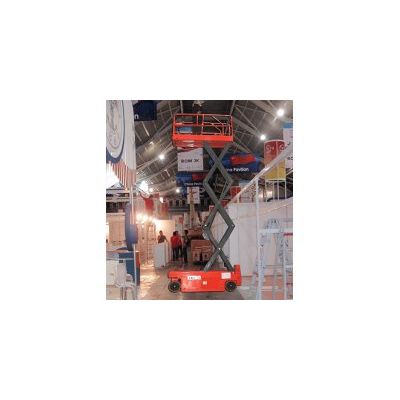

Sinoboom - Model GTJZ0608S -Self Propelled Scissor Lift
Self-propelled, Can be drived at full height, Automatic braking system, Proportional controls, Automatic pothole protection, Self-lock gate on platform, Non marking tyre, Emergency stop button, Emergency lowering system, Cylinder holding valve, Tilt sensor with alarm, All Motion Alarm, Horn, Hour meter, Safety brackets, Forklift pockets, Foldable guardrails, Extendable platform, Charger protection , Flashing beacon, 2WD
Platform height 5.8M
Working height 7.8M
Overall length 2.19M
Options available
- Overload sensor with alarm
- AC power on the platform
- Platrom work lights
- Airline to the platfrom
- 4*225Ah Battery
- Leakage protection
- Portuguese manuals
- Portuguese Warning marks
- Onboard diagnostic system
Benefit for the applications:
- Small turning radius: The outside turning radius of the tires is 6 ft 5 in (1.98) and the inside turning radius is 0 ft 0(m).
- Large load capacity: The maximal load capacity reaches 705 lbs (320 kg) and the load capacity of the extended platform is up to 265 lbs (120kg).
- Sufficient electric power: Trojan batteries imported from USA are used with four groups with capacity up to 225Ah;
- Advanced technology: Adpot DeltaTech control system and fault self-diagnosi technique,with anti-collision transducer option.
- High reliability: Imported key components and the waterproof capacity of major with electric components is up to IP65.
- Good safety: Equipped with horizontal switch and weighing sensor, which ensures the safety of equipment and operators.
- Easy maintenance: Dual revolving doors, easy to maintain.
- Energy-saving and environment-friendly: Low noise, no pollution,and environmental protection standard.
Dimensions
Platform height max.: 19 ft (5.8 m)
Working height max.: 25 ft (7.8 m)
Platform extended: 3 ft (0.9 m)
Lengt - stowed: 5 ft 8 in (1.775 m)
Width - stowed: 2 ft 5 in (0.76 m)
Height- stowed: 6 ft 8 in (2.06 m)
Wheelbase: 4 ft 3 in (1.315 m)
Ground clearance: 3 in (0.07 m)
Platform size(L*W*H): 5 ft 4 in*2 ft 5 in*3 ft 6 in (1.64 m*0.76 m*1.1 m)
Productivity
Max. platform occupancy: 2
Lift capacity: 507 lbs (230 kg)
Lift capacity - extension deck: 265 lbs (120 kg)
Driving speed - stowed: 0~2.5 mph (0~4 km/h)
Driving speed - raised: 0~0.5 mph (0~0.8 km/h)
Gradeability: 30%
Turning radius - inside: 0 ft (0 m)
Turning radius - outside: 4 ft 9 in (1.48 m)
Raise / Lower speed: 18/ 25 s
Controls: Proportional
Drives: Dual front wheel
Brakes: Dual rear wheel
Tire size (solid non-marking): 12 in * 5 in (305 mm * 115 mm)
Power
Power source: 24V DC (4*6V, 225Ah batteries)
Hydraulic system capacity: 4.76 gal (18 L)
Power: 3 KW
Weight
Indoor: 2928 lbs (1328 kg)
Standards Compliance: CE/ ISO/ ADR/ ARAMCO
