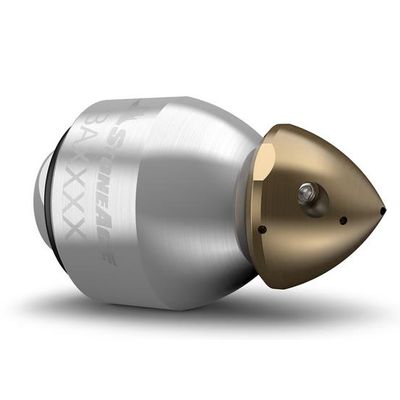

StoneAge - Model 2” Badger 15k psi/1034 bar -Self-Rotating Swivel Nozzle
FromStoneAge, Inc.
The 2" Badger is a self-rotating swivel designed for cleaning 2-4 in. (51-102 mm) pipes with bends and long radius elbows, such as U-Tubes and process lines. The 2" Badger heads are pre-drilled, which greatly simplifies jetting options and eliminates the need to repair inserts in the field while delivering the same industrial cleaning performance and more durability.
Most popular related searches
- Navigates pipes with bends as small as 2 inches (51 mm) in diameter
- Drilled heads improve reliability while delivering the same power and life
- Three pre-drilled heads available that cover all required pressure and flow configurations
- Engineered for long-term use with low-cost head replacements and no bearings, seals, or lubricants to maintain
- Optional fairing available to streamline tool during retrieval
- Drill Pattern A: performance with highest flow
- Drill Pattern B: performance with medium flow
- Drill Pattern C: performance with lowest flow
- Length2.0 in. / 5.08 cm
- Weight0.45 lb / 0.2 kg
- Flow7-16gpm / 26.5-60.6lpm
- Inlet Connection1/4" NPT (P4), 1/4" BSPP (BSPP4)
- Minimum Pipe Size2 in. / 51 mm
- Maximum Pipe Size4 in. / 102 mm
- Diameter1.3 in. / 3.3 cm
- Max Pressure15k psi / 1000 bar
- Max. Water Temp250°F / 121°C
- Rotation SpeedHigh speed
- Tool FamilyBadger
