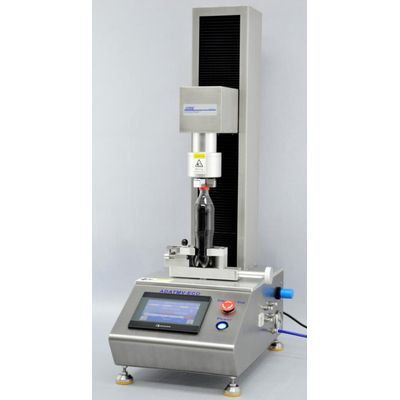

Six-T7 - Model ADATMV - ECO -Semi-Automated Torque Tester
Touch screen display, Measures opening and closing directions, Measuring range: 00.00 to 99.00 Kgf.cm, 2 measuring cycles (Opening or Closing, Removal +Breaking), Units: Kgf.cm / Inch.lbs / daN.cm / N.m / N.cm, Measure head rotating speed adjustable (0.3 – 10.0 rpm), Accuracy: +/- 0.5 % of full scale, 30 products memorization, Up to 8 thresholds (limits) option (according to cycle), 10 operators memorization, Configuration by protected password (administrator), Operation pressure monitoring, auto warning for insufficient operation pressure, Memorization up to 990 measures (transferable), Dynamic display: statistics, hour, date, Display: product name, operator, batch N°, line N°, 1 RS232 & 1 mini-printer interface, Language: English, Delivered with COFRAC calibration certificate, AC 110 - 240 V 50/60 Hz.
- One key start, just press the start button to carry out the test process
- Automatic zero before restarting cycle
- Settable height of column for all samples
- Easy-fast selector for cycles
- Settable speed for screwing and unscrewing operations
- Pneumatic cap clamping chuck
- Stainless steel Frame
- Choice of jaw, or bottle neck clamp
- Dimensions:
- 398 (L) x 590 (W) x 1060 (H) mm
- Weight: 50 kg
- Mini printer
- QUALITORQ Software
- Calibration pack
- Dynamometric system
