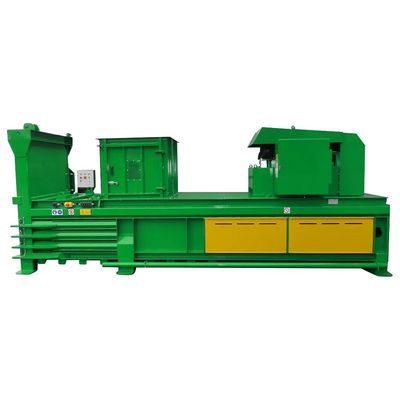

Greenbank - Model GB50H 38T -Semi Automatic Baler

• Vertical (Portcullis type) hydraulic end door
• Full bale eject of each bale
• High and low pressure baling modes Low level machine (loading) height
• Horizontal bale tying 4 wire ties
• Hardox plated floor and press plate base

Our waste and recycling balers are capable of producing high density, mill quality bales. The enclosed power pack has proven to reduce power consumption, contributing to a lower carbon footprint.

If you’re interested in finding out more please download our specification sheet below – or place an enquiry with one of our technical advisors

• Press Force: 38T
• Waste Volume: Large
• Feed Opening: WxH (mm) 1250 x 1050 mm
• Bale Size: WxDxH (mm) 750 x 1100 x 1200 mm
• Bale Weight (KG) : 400-500
• Waste Types: Cardboar

• Reduce labout costs
  • Save on labour costs with faster loading and fast running cycles
• Increased payloads and reduced transport costs
  • High density, high value, mill quality bales

Key Features:

• High Quality, Square Edged, Mill Sized Bales
• Full Hydraulic Bale Eject
• Easily loaded with Open Flared Hopper

• Specification: GB50H 38T
• Bale weights: 400kgs – 500kgs
• Compaction Pressue: 38 Tonnes
• Cycle time: 40 seconds (60 sec. Standard)
• Bale dimensions (WxHxL): 750mm x 1100mm x (up to) 1200mm
• Loading aperture (LxW): 1250 x 1050 mm
• Number of wires per bale: 4 tie slots
• Motor Power: 5.5 kW, 32A
• Control voltage: 24 vDC
• Power supply: 3 PH + E + N, 400V, 50Hz
• Weight (from): 6,500 kg
