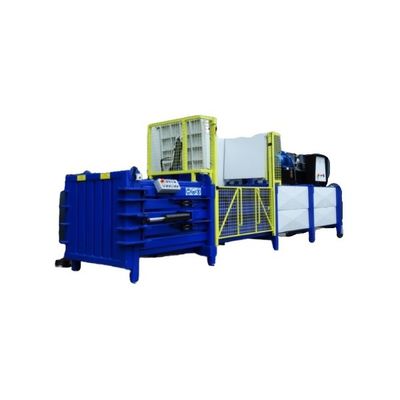

Bartontech - Model 600 Cross -Semi-Automatic Baler and Horizontal Press
Semi-automatic baler, horizontal press with press flaps model 600 Cross dedicated to foam, tyres and other recyclable materials. Excellent baler in tyre recycling process – pyrolysis. The machine is also able to bale waste like paper, cardboard etc.
Most popular related searches
semi-automatic horizontal baler
semi-automatic baler
automatic horizontal baler
horizontal baler press
automatic baler
horizontal baler
tire recycling system
baler
tire recycling
recycling system
- inlet size (height x width): 1850 mm x 950 mm
- bale dimensions: 1000 mm x 800 mm x 1000 – 1300 mm
- bale weight: foam: 300 kg / foil: up tp 500 kg / cardboard: up to 400 kg
- wire: 3,5 mm (minimum diameter)
- number of wires: 9
- binding direction: horizontal and vertical (4×5)
- pressure: 210 bar
- pomp size: 61 cc, 9 cc
- number of pistons: 2 + 2 extra pistons for pushing out the bale
- pressure power: 50 tonnes
- motor speed: 1440 rpm
- standard pressing cycle: 15 kW / 70 seconds or 22 kW / 50 sec.
- electricity: 35A (15 kW motor)
- voltage: 415 V
- inner electrical circuit: 24V DC
- hydraulic system of opening and closing the doors
- indicator of full bale and blocked bale
- CE certificate
