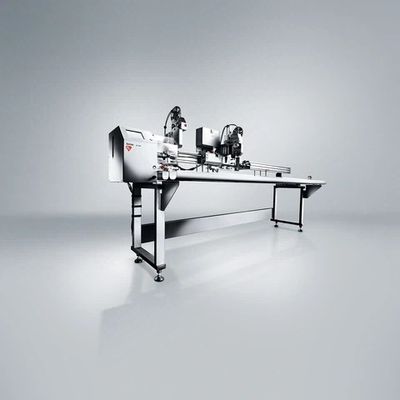

Komax BT - Model 188 T -Semi-Automatic Cable Processing Twister Machine
The bt 188 T semi-automatic cable processing machine twists up to four wires and the wire ends can also be automatically fixed with tape in an optional step. The bt 188 T offers excellent quality at high speeds of up to 350 pieces per hour in single twisting. The twisted end and lay length, wire cross section, wire outer diameter and open ends can be varied depending on requirements. The required cutting length is calculated automatically. The bt 188 T therefore offers economical twisting with short set-up and changeover times. The integrable multi-twisting unit processes three or four wires in a single process step and features uniform lay lengths and high reproducibility. The optional spot taping unit is only available for the bt 188 T. The twisted wires are protected against untwisting with spot tape made of fabric or PVC tape.
Intuitive user interface with TopTouch for easy operation
The TopTouch user interface can be used to set the parameters of the semi-automatic twisting unit. The user-friendly software guides you through the process.
The bt 188 T twists wires at a speed of up to 350 pieces an hour – and with high quality to meet all requirements in the automotive industry.

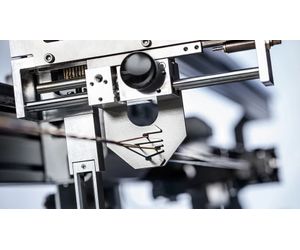

The flat grippers can also be used to twist three or four wires precisely multiple times. The result is impressively uniform lay length and high reproducibility.

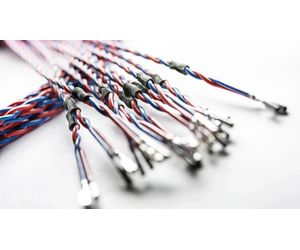

The integrated spot taping unit enables both ends of the cable to be spot taped simultaneously. The module thus protects against untwisting with spot tape made of fabric or PVC tape.
BT 188 T
Metric
- Wire length, untwisted with extensions max.: ca. 200 – 11300 mm
- Min. wire length with precise multi-twisting option: 300 mm
- Min. wire length with spot taping unit option: 700 mm
- Wire cross section min.: 2 × 0.08 mm²
- Wire cross section max.: 2 × 4.0 mm²
- Open wire ends on twisting side min.: 25 mm
- Open wire ends on twisting side max.: 85 mm
- Open wire ends on holding side min.: 25 mm
- Open wire ends on holding side max.: 190 mm
- Different open ends max.: 60 mm
- End length of twisted wires min.: 200 mm
- End length of twisted wires max.: 2300 mm
- End length of twisted wires with 1 extension max.: 5300 mm
- End length of twisted wires with 2 extensions max.: 8300 mm
- End length of twisted wires with 3 extensions max.: 11300 mm
- Lay length min.: 8 ± 5 mm
- Lay length max.: 50 ± 5 mm
- Wire cross section (optional) min.: 3 x 0.08 – 3 x 2.5 mm²
- Wire cross section (optional) max.: 4 x 0.08 – 4 x 2.5 mm²
- Electrical connection: 115/230V, 50/60Hz
- Compressed-air connection: 4 – 6 bar
- Weight (approx.): 95 kg
- Weight of frame approx.: 45 kg
- Weight of complete extension module approx.: 65 kg
- Length: 3700 mm
- Width: 850 mm
- Height: 1280 mm
- Length of extension module (up to 3 extension modules possible): 3000 mm
- Width of extension module (up to 3 extension modules possible): 850 mm
- Height of extension module (up to 3 extension modules possible): 1280 mm
- Processing outside the specifications: Processing outside the specifications upon request. In case of doubt, we will be happy to provide processing samples for your wires.
- Producible parameters: Reproducible parameters depend on process parameters and processing speed.
- Completed twisted length: The finished twisted length depends on the material and lay length. With option for two short twisted wires: minimum wire length > 160mm.
Imperial
- Wire length, untwisted with extensions max.: ca. 7.87 – 444.9 in
- Min. wire length with precise multi-twisting option: 11.81 in
- Min. wire length with spot taping unit option: 27.6 in
- Wire cross section min.: 2 × AWG28
- Wire cross section max.: 2 × AWG11
- Open wire ends on twisting side min.: 0.98 in
- Open wire ends on twisting side max.: 3.35 in
- Open wire ends on holding side min.: 0.98 in
- Open wire ends on holding side max.: 7.48 in
- Different open ends max.: 2.36 in
- End length of twisted wires min.: 7.87 in
- End length of twisted wires max.: 90.55 in
- End length of twisted wires with 1 extension max.: 208.7 in
- End length of twisted wires with 2 extensions max.: 326.8 in
- End length of twisted wires with 3 extensions max.: 444.9 in
- Lay length min.: 0.31 ± 0.2 in
- Lay length max.: 1.97 ± 0.2 in
- Wire cross section (optional) min.: 3 x AWG28 – 3 x AWG14
- Wire cross section (optional) max.: 4 x AWG28 – 4 x AWG14
- Electrical connection: 115/230V, 50/60Hz
- Compressed-air connection: 58 – 87 psi
- Weight (approx.): 209 lb
- Weight of frame approx.: 99 lb
- Weight of complete extension module approx.: 143 lb
- Length: 145.7 in
- Width: 33.47 in
- Height: 50.39 in
- Length of extension module (up to 3 extension modules possible): 118.11 in
- Width of extension module (up to 3 extension modules possible): 33.47 in
- Height of extension module (up to 3 extension modules possible): 50.39 in
- Processing outside the specifications: Processing outside the specifications upon request. In case of doubt, we will be happy to provide processing samples for your wires.
- Producible parameters: Reproducible parameters depend on process parameters and processing speed.
- Completed twisted length: The finished twisted length depends on the material and lay length. With option for two short twisted wires: minimum wire length > 160mm.
