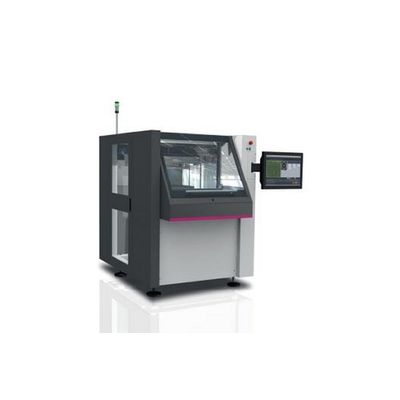

ASYS - Model 2000/2100/2300 -Semi-automatic Depaneling System
All systems of the DIVISIO 2000 Series can optionally be equipped with a robot interface. This interface allows the semi-automatic systems to be loaded and unloaded fully automatically.
The DIVISIO 2000 is a semi-automatic system for stress-free depaneling of PCBs. The X- and the Y-axes are both equipped with highly dynamic linear motor technology, the Z-axis is servo-driven. Already existing product carrier adapters can easily be used with this machine. The vacuum system is optimized with the help of the Tornado-E ect.
The system offers a cost-e cient solution for customers who wish to depanel stress-free but who do not produce such a high volume to justify the acquisition of an inline machine. By positioning the routing axis either above or below the electrically driven rotary table the DIVISIO 2100 has the fl exibility to represent a verifi ed production process. It can therefore be used without any restrictions as back-up for the inline production.
The DIVISIO 2300 commands the largest working area within the entire DIVISIO depaneling systems.
- Linear motors for highest dynamics and accuracy
- Rotary-table with two working areas
- Touch screen monitor
- SIMPLEX HMI offers comfortable operation
- Ionization unit
- Automatic tool change with 2 routers per magazine
- Complete tool management
- Breakage control
- Length verification
- Diameter check
- Life span monitoring
- Dynamic utilization of full router bit
- Automatic maintenance schedule
