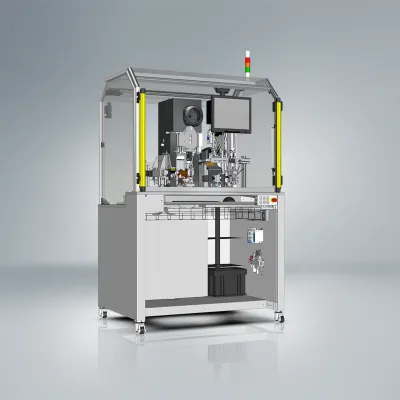

Komax Lambda - Model TM4000 -Semi-Automatic Modular Machine Platform
The TM4000 is a modular machine platform that fills the gap between standardized wire processing machines for individual processing steps and fully automatic production systems. The machine platform TM4000 is used for semi-automatic assembly of sensor and data cables in the automotive and industrial sectors. As an economical alternative between the two system types for standardized wire processing with individual steps and fully automatic production, the powerful TM4000 covers a wide variety of applications. The system can be equipped with various reliable process modules, quality tools and customer specific elements. Due to the modularity of the platform, the machine can be configured to your specific system that suits your individual needs.
Metric
- Cable length (uncoiled): 51.2 in
- Wire outer diameter max.: 0.55 in
- Inner conductor diameter max.: 0.35 in
- Dismantling length min.: 0.55 in
- Strip length min.: 0.008 in
- Strip length max.: 1.6 in
- Wire cross section max.: AWG9
- Speed cable clamp max.: 31.5 in/s
- Electrical connection: 220 V, 50 / 60 Hz
- Current: 16 A
- Compressed-air connection: 87 psi
- Weight: ca. 772 lb
- Width: 34.8 in
- Length: 47.2 in
- Height (with tower light): 84.1 in
- Processing outside the specifications: Processing outside the specifications upon request. In case of doubt, we will be happy to provide processing samples for your cables.
- Outer cable diameter depending on: Outer cable diameter is determined by the resolution of the light curtain.
- Dismantling length outside the specifications: Smaller dismantling length upon request. Smallest is min. 8.2 mm (0.32 in)
- Wire cross section depending on: Wire cross section is determined by the crimp module. Stripping unit is max. 16 mm² (5 AWG).
Imperial
- Cable length (uncoiled): 51.2 in
- Wire outer diameter max.: 0.55 in
- Inner conductor diameter max.: 0.35 in
- Dismantling length min.: 0.55 in
- Strip length min.: 0.008 in
- Strip length max.: 1.6 in
- Wire cross section max.: AWG9
- Speed cable clamp max.: 31.5 in/s
- Electrical connection: 220 V, 50 / 60 Hz
- Current: 16 A
- Compressed-air connection: 87 psi
- Weight: ca. 772 lb
- Width: 34.8 in
- Length: 47.2 in
- Height (with tower light): 84.1 in
- Processing outside the specifications: Processing outside the specifications upon request. In case of doubt, we will be happy to provide processing samples for your cables.
- Outer cable diameter depending on: Outer cable diameter is determined by the resolution of the light curtain.
- Dismantling length outside the specifications: Smaller dismantling length upon request. Smallest is min. 8.2 mm (0.32 in)
- Wire cross section depending on: Wire cross section is determined by the crimp module. Stripping unit is max. 16 mm² (5 AWG).
