Normalab France SAS

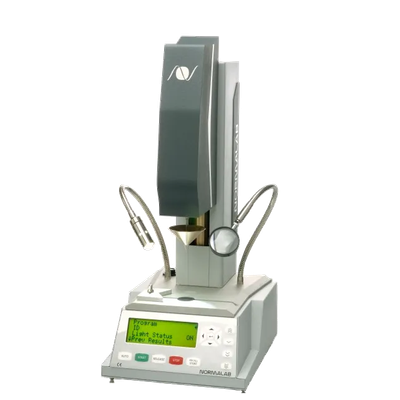

Normalab - Model NPN Tech 942734 -Semi-Automatic Penetration Value Determination System
These test methods cover different procedures of measurement using distinct accessories. It includes the determination of the penetration of semi-solid and solid bituminous materials. It measures the consistency of lubricating greases. It can be applied to petrolatum, cosmetic, food and cream as an empirical measure of consistency but also on waxes derived from petroleum by measurement of the extent of penetration.
Most popular related searches
hybrid stepper motor
cooled incubator
temperature monitoring
grease test
grease testing
optoelectronic
penetration system
incubator
bath incubator
integrity monitoring
- 4 speeds (3 downwards / 1 upward)
- 4 programmable positions
- Flexible LED lamp and magnifying glass
- Precise stepper motor with accuracy of 0.05 mm
- Automatic surface detection (option)
- Programmable penetration time
- Optoelectronic detection of penetration depth
Supplied with :
- Flexible magnifying lens
- Flexible LED lamp
- Needle holder
- 1 power cable
Options and accessories
- Cryostat
- Transfer bath and support
- Cooling incubator
- Automatic approach kit on conductive products
- Automatic holder for hard bitumen
- Accessories kit specific for your application (on request)
Security
- Automatic detection
Software
- Integrated software
- Possibility to program the parameters
- Memory: 10 results
- 20 tables maximum
- Programmable parameters: operating mode, pause time, penetration time, penetration limit, etc.
Site requirements
- Power supply: 240V, 50Hz, 1A
- Dimensions (mm): (W) 250 x (D) 330 x (H) 720
- Weight: 16kg
-
Temperature measurement -10°C to 150°C
-
Temperature unit °C or °F
-
Humidity operating 30 à 80% Rh max
-
Penetration time Up to 999 minutes
-
Overflow indicator Visual and audible
-
Range 0 to 75mm
-
Accuracy ±0.05mm
-
Results in memory 10
