Herbert Arnold GmbH & Co. KG

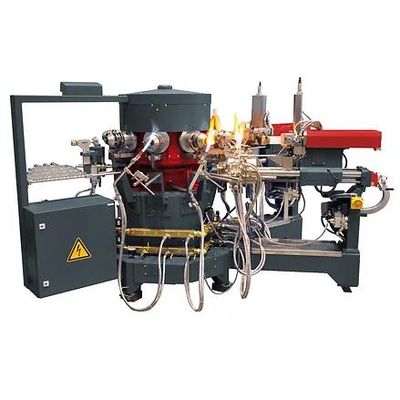

Herbert - Model 54/50 -Semi-Automatic Rotary Type Glass Forming Machine
Production of: Standard ground male joints NS 10 – 45. Standard ground male joints with tip NS 14,5 – NS 45. Standard ground female joints NS 10 – 45. Standard ground female joints at round bottomed flasks and Erlenmeyer flasks NS 10 – NS 29. Standard ground male ball joints and standard ground female ball joints from KS 13/5 – KS 34/20. Glass external threads GL 14 – GL 45. Flanges up to NW 25.
Most popular related searches
- PLC controlled working process , easily programmable, stored programs are called in via touch control
- high capacity, import accuracy by fine adjustment of forming tools, thus constant, tight tolerances and low grinding times
- tool operation pneumatically, (motorized as an option) with oil-retarding process in working range
- automatic compensation of length, thus constant glass quantities for forming process
- operation of the machine by semiskilled staff
