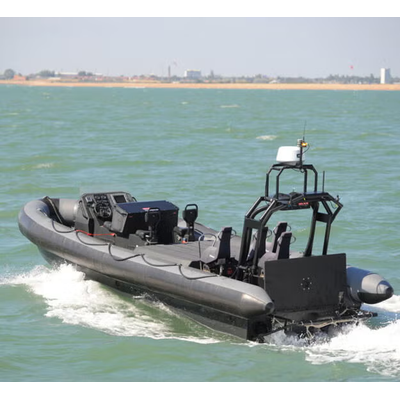

L3 OceanServer - Semi-Bespoke Autonomous Surface Vehicles (ASV)
L3Harris has in-house capability to design and build custom ASVs. The company has produced 25 different types of vehicles up to 13m (44ft) in length. Each design has been created for a specific application such as ISR, AUV tracking, Mine Countermeasures and hydrographic survey.
Most popular related searches
autonomous surface vehicles (ASV)
fiber optic gyroscope
inertial navigation system
sound velocity probe
doppler velocity log
safety system
carbon fiber
depth sensor
doppler velocity
underwater locating
Depth
- 300 m (980 ft) Rated Durable Titanium Center Section
- Depth Sensor
Length
- 2.5 m (99 in)
O.D.
- .23 m (9 in) Carbon Fiber Tubes
Range
- >40 NM
Speed
- >3 knots transit
- >5 knots sprint
Power
- NiMH (~2000 Wh) Rechargable
Inertial Navigation System
- INS based on iXBlue PHINS Compact C3 fiber-optic gyroscope
Interferometric Co-Registered Sonar
- Edgetech 2205B: Swath bathymetry 600 kHz
Field Rugged Operator Console
- Getac for mission planning, operating and data viewing. Includes VectorMap Mission Planning Software and VectorMap surface radio.
Topside Deck Box
- Surface equipment for subsurface comms with Benthos Acoustic Modem
Handheld Remote Controller
- Touch screen based remote with joystick for surface control (300+ m range)
Antenna Mast
- GPS/WiFi Fixed Strobe Antenna Mast
Acoustic Pinger
- Underwater locator beacon
SVP Sensor
- Sound velocity probe (AML)
Doppler Velocity Log
- Nortek DVL w/ ADCP
Bottom Lock
- 200m Bottom Lock Range
Rugged Transit Case
- Includes custom foam inserts for Iver4
Safety Systems
- Drop Weight & Watchdog Iridium safety systems
Support
- Iver API Documentation Support
- Forward Payload Integration including Subtester Software
- 12 Month Warranty
