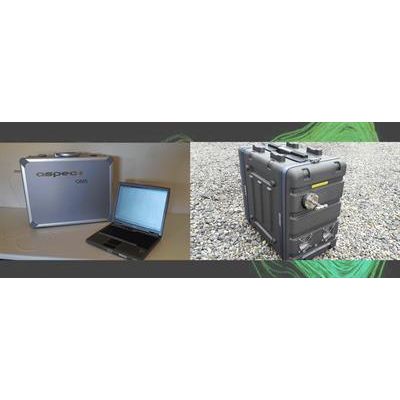

Semi-Portable Mass Spectrometer

Each Aspec Ms system comes installed with 1 days instrument familiarisation and application interfacing and optimisation.12 months warranty.Competitively priced: Typical 0-200 amu compact bench top MS system with 2m sample line, Data system, installation and training starting at £12,000.00+ VAT. Aspec MS LTD also offer MS instrument hire! Its unique design allows the user to purchase one instrument model and select and connect any one of a number of sample interface systems to match the application. The powerful analytical software allows data to be quickly collected and either displayed as a full mass spectra (showing all gas species present within a process) or quickly configured to measure specific gas components of interest and data log against time. Both quantitative as well as qualitative data may be achieved with this instrument. Communication between instrument and controlling PC data system can either be by standard serial COMS cable or Short Range Wireless.

Hardware

• Air cooled. Robust enclosure, aprox: 430x 350 x 160mm <14kg
• Mains input voltage: 90- 250vac. 50/60 Hz. <3A
• 70l/sec Turbo Molecular Drag pump
• Chemical resistant diaphragm /sample pump
• Automated vacuum system control
• 6mm st/steel Multi application sample connection port
• Built in I/O: 4 x analogue o/p, 2 x analogue inputs, digital ports

Software

• Analogue spectra scan of all gas species
• Fast Histogram scan of all gas species (< 4s)
• Up to 64 gas component qualitative analysis
• Up to 64 gas component quantative analysis
• ASCII conversion of all data

• Direct, real time concentration data   (ppm %)
• Large dynamic range of many gas,s (9 decade).
• Fast analysis (<10ms/data point)
• Multiple gas detection.(many hundreds of gas species)
• Easy data interpretation and data export to ASCII
• Time resolved data (trend mode)
• Little or no sample preparation.
• Low running cost
