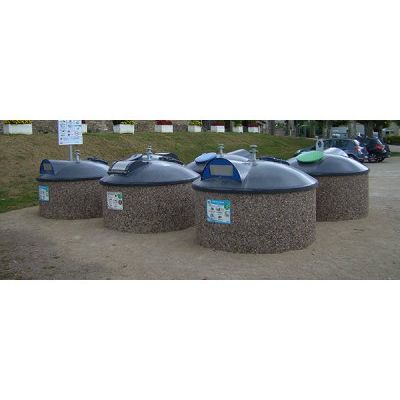

GeoTainer - Model GTT -Semi Underground System

SHARE

The GeoTainer Model GTT is a similar construction to the Model GTE. This special design was created not just for a different appearance – it has been optimized for transport too.

Most popular related searches
plastic washing
sump pump
  1. Pick-up system for truck crane
  2. Collecting container
    • Collecting container made of galvanized steel sheet
    • 1, 2 or 3 chambers
    • Basin-like trap doors retain any remaining liquid
    • rap doors held and operated by traverse/leverage system which is connected to pick-up system
  3. Casing for the outer container (overground)
    • Wooden casing "economic"
    • Plastic panels
    • Washed-out concrete
    • Plane concrete
    • Corrugated metal sheet
    • Perforated metal sheet
  4. Outer container
    • Concrete:
      - Reinforced, cast in one piece, watertight
      - Pump sump
      - Anchor straps on the side to facilitate transport
      - Sheet metal ring as edge protection
    • or option:
      - Sturdy construction made of galvanized sheet steel
      - Pick-up for lifting by crane
