GeoTainerModel GTV -Semi Underground System

SHARE

The Model GTV is a similar construction to the Model GTU and works in exactly the same way. A galvanized collection container is placed in a concrete outer - part of which is below ground level. The main difference is the shape: it`s square - a refreshingly new appearance! The visible section of the concrete outer above ground level can be given a finish that blends in with the immediate surroundings - this can be a particular colour, wooden planking or perforated steel plate.

Most popular related searches

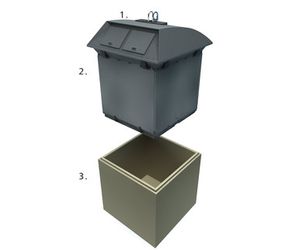

  1. Pick-up system for truck crane
  2. Collecting container
    • Collecting container made of galvanized steel sheet
    • 1, 2 or 3 chambers
    • Various throw-ins
    • Basin-like trap doors retain any remaining liquid
    • Glass: trap doors held and operated by high-strength chains, insulated against noise and connected to pick-up system
    • paper/household refuse: trap doors held and operated by traverse / leverage system which is connected to pick-up system
  3. Concrete outer
    • Reinforced, cast in one piece, watertight
    • Pump sump
    • Anchor straps on the side to facilitate transport
