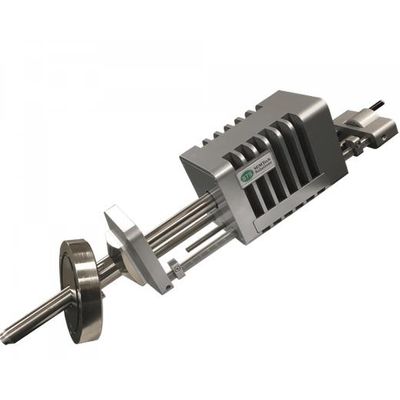

SEMTech - Solutions Silicon Detectors (SDD) for EDS Analysis

The STS SD EDS detector can also be configured as a Si(Li) replacement on most end-user installed EDS systems.

SEMTech Solutions provides the following support for our customers:

• Manufacture of chamber flange
• SDD Detector factory installed and tested prior to shipment
• 1st Line of Service Support
• IXRF Software installed and tested on the SEM Imaging PC – One PC Solution

The STS SD Detector provides exceptional and stable performance over a wide range of count rates (up to >1Mcps input rate).

The detector output is fully adaptable to provide optimized input directly to most analogue or digital pulse processing systems. The STS SD silicon drift detector operates with a single power supply unit and can be supplied with or without a digital pulse processor. Our STS SD system is vibration free and supplied with vacuum interface for any commercially available SEM.

The STS SD Silicon Drift Detector provides

• Industry standard signal output
• Compatibility with most existing pulse processing systems
• Reliable peltier cooled design
• Low noise, excellent resolution, high rate capability
• Single and multi-sensor products
• Electron trap standard on sensors (SEM)
• Optional translation stages / manual slides
• Various collimation option
• Availability in standard or compact models
