Senceive GeoWAN - Model PDS-LR3N-LDS -Optical Displacement Sensor Node
FromSenceive Ltd
The GeoWAN Optical Displacement Sensor Node is an instrument which uses optical means to take high precision displacement measurements and pass these through Senceive’s GeoWAN wireless communications network to a GeoWAN Gateway. It can also be combined with Senceive’s worldleading triaxial tilt sensor to obtain high precision tilt measurements that are linked to an external reference.
Most popular related searches
displacement sensor
optical sensor
temperature sensor mounted
temperature sensor
triaxial sensor
integrity monitoring
tunnelling
waterproofing
noise sensor
Successfully applied in many applications, including those measuring:
- Convergence/divergence for tunnel/arch intrados or bridge abutments
- Vertical movements for structural settlement or heave
- Lateral movements such as rail track slew
- Earthworks and embankment movement
- Fully integrated unit
- Extremely low noise performance

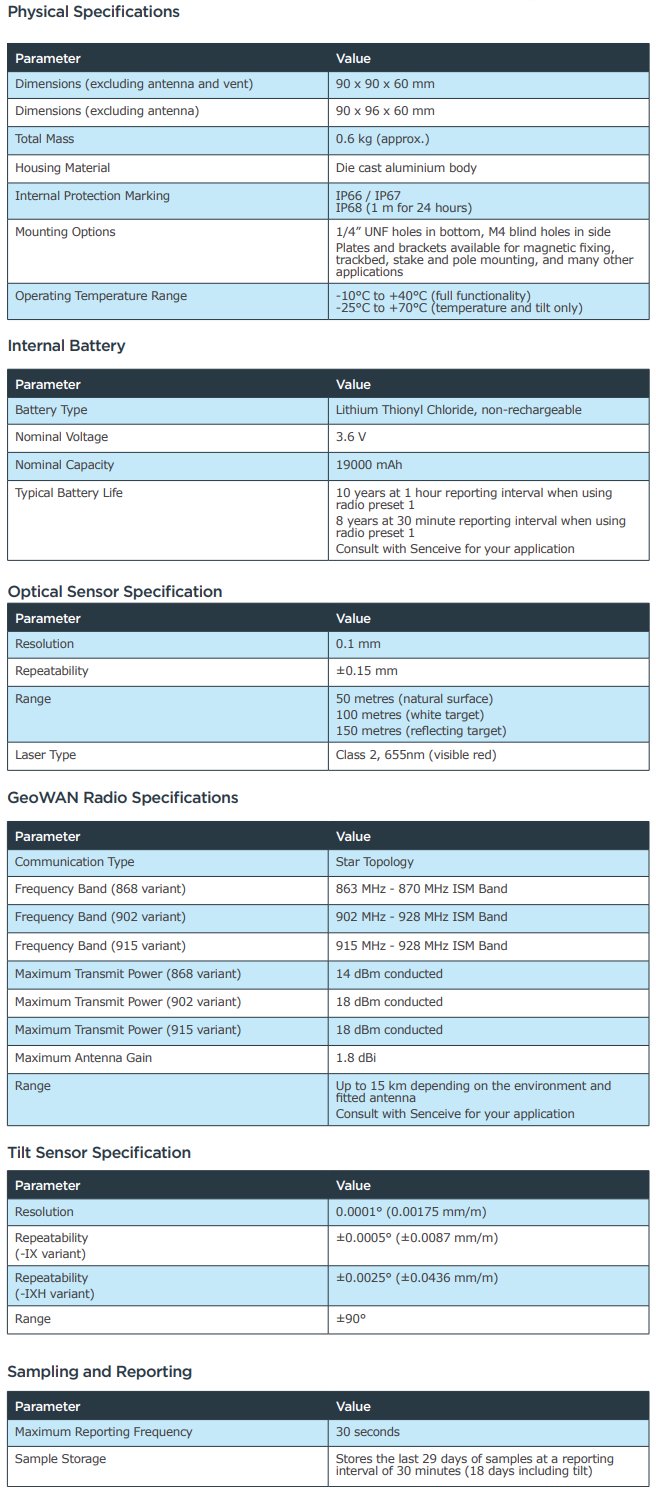

- Optical sensor resolution of 0.1 mm and repeatability of ±0.15 mm
- Tilt sensor resolution of 0.0001° (0.0018 mm/m) and repeatability of ±0.0005° (±0.009 mm/m)
- Integrated long life battery
- Up to 10 year battery life
- Easy to align with target when using the magnet triggered aiming mode
- Integrated temperature sensor
- Versatile mounting options
- Waterproof to IP66 / IP67 / IP68
