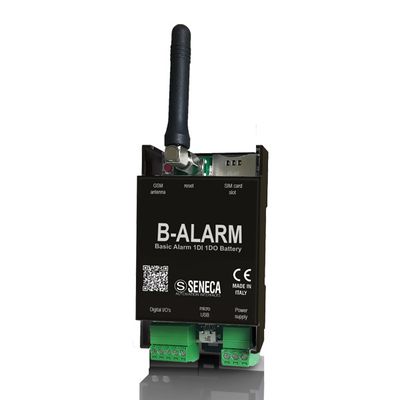

SENECA - Model B-ALARM -Basic Remote Alarm and Data Logger Unit
The B-ALARM unit is a fundamental component in data acquisition and automation systems, designed by SENECA for remote alarm and data logging purposes. This basic unit is equipped with one digital input (1DI) and one digital output (1DO) facilitating SMS command communication. B-ALARM is primarily used in contexts requiring remote monitoring and control, such as industrial automation, environmental monitoring, and infrastructure management. It functions effectively in industries ranging from chemical and pharma to energy and renewables, aligning with SENECA's focus on delivering reliable automation solutions. It supports versatile applications with its provision for backup battery, ensuring continuous operation during power outages. B-ALARM units can be paired with various antenna types for enhanced signal reception, making them adaptable to numerous environmental conditions. Comprehensive setup tools are available for seamless integration into existing systems.
B-ALARM is a GSM device designed for remote management of alarms in homes, buildings, plants, production machines through simple commands sent with SMS messages. With any smartphone it is possible to control the boiler on and off, activate a contact, etc. The device is equipped with a GSM module inside it that behaves like any other telephone terminal on a cellular network. The unit allows to operate with commands at zero cost through ringing as well as with fast commands with numerical code and timed. It also has 1 digital input and 1 SPDT output relay with a capacity of 3 A / 250 Vac. B-ALARM can count on a 5-user command book (1 of which is an administrator) and a SIM phone book extended to up to 250 users (commands by ringing). Online configuration is ensured by the EASY SETUP plug&play software and partially remotely via SMS.
- Power supply : 10..28 Vdc
- Power consumption : Typical 1.2 W, max 2 W
- Protection degree : IP20
- Rechargeable battery : Li-On, lifetime up to 100 minutes
- Operating temperature : -10..+55°C
- NTC sensor built-in : No
- Connection : Removable screw terminals, ptich 3,5 mm
- SIM-CARD slot PUSH-PUSH type
- SMA connector for stilo GSM/GPRS antenna
- Micro USB port (configuration)
- SD card : No
- Protocols : SMS
- Display : No
- GSM : Quad band (850 / 900 / 1800 / 1900 MHz)
- Dimension (wxhxd) : 54 x 114 x 32
- Weight : 80 g
- Material : ABS polycarbonate
- Mounting : DIN rail or wall mount
- Basic configuration : Software (EASY SETUP)
- Pre-programmed scenarios : No
- Datalogger : No
- SMS alarms / Ring tones command : Yes
- DTMF / Voice alarm command : No
- Incremental alarms : Yes
- Email management : No
- Phone book : 5 users (1 admin), 250 contacts
- Free command ring tones : Yes
- Fast / timing command : Yes
- Counters and timers : 4 counters
- SMS and temperature Mobile App : No
- Digital Input channels : 1 type contact, voltage 6-24 V
- Digital Output channels : 1 tyoe SPDT Relay 3 A / 250 Vac
- Aprovals : CE
- Norms : EN60950, EN 301 511, EN 301 489-7, EN 301 489-1
- SHIPPING AND EXPORT INFORMATION
- PRODUCT CODE : B-ALARM
- GROSS WEIGHT kg : 0.16
- ORIGIN : IT
- CN (Combined Nomenclature) : 85176200
- ECCN : 5A991
