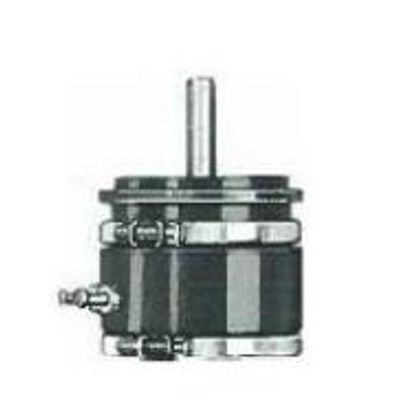

Sensata - Model 1201-1801 Series -Rotary Motion Precision Sensor
Servo Model / Ball Bearing. 7/8” to 3” Diameter Servo Mount. Wirewound Single-Turn Precision Potentiometers.
Most popular related searches
- Actual Electrical Travel 354°±2°
- Normal Resistance Range 100Ω to 30K
- Extended Resistance Range 25Ω to 100K
- Resistance Tolerance: Standard % ±3
- Best Practical % ±1
- Power Rating At 70°C, Derating to 0 At 125°C (Watts) 2.0
- Linearity, Independent, Tolerance, Standard % ±0.4
- Best Practical % ±0.15
- Equivalent Noise Resistance (ENR) Max. (Ohms) 100
- End Voltage Max. (% Of Total Applied Voltage) Within linearity tolerance
- Insulation Resistance At 500 VDC, Min. (Megohms) 1000
- Dielectric Withstanding Voltage (Volts RMS) 1000
- Max. Applied Voltage(Volts DC) 400
- Temperature Coefficient Of Potentiometer, Max. % / °C ±.007
