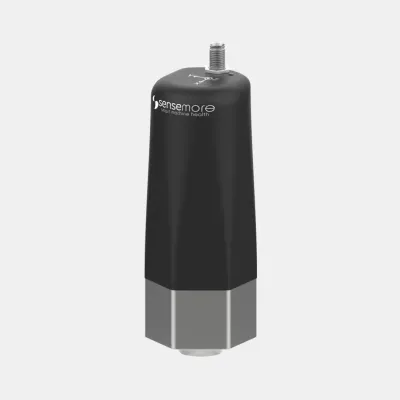

Sensemore - Model Infinity PRO -Battery Powered Wireless Accelerometer, Magnetometer, and Thermometer

The Infinity PRO from Sensemore is a versatile and rugged battery-powered wireless device featuring a triaxial accelerometer, magnetometer, and thermometer. It is specifically designed for route-based measurements and industrial IoT applications. The device communicates via Bluetooth Low Energy (BLE) 5.1, making it compatible with the Sensemore Mobile App for easy data acquisition and monitoring. The Infinity PRO can harvest energy from sources such as solar cells or thermoelectric generators, enhancing its operational longevity. It offers a sampling rate of 26 kHz for the accelerometer, with a dynamic range of ±16 g, and a magnetometer with a magnetic flux density sensing range of ±160 mT, and 65 µT flux resolution. The thermometer measures temperatures from -40 °C to +125 °C with a sensitivity of ±0.5°. The device is IP68-rated, ensuring durability in harsh environments. Additionally, it supports external analog sensors through an ADC input and has installation options for stud or adhesive mounting. The Infinity PRO is factory-calibrated for immediate use, but detailed calibration procedures are available if needed. Suitable for condition monitoring, the device integrates seamlessly into existing IoT systems via provided APIs and supports data streaming for comprehensive machine health analysis.
