IST AG - Model OOL -Sensor Evaluation Kit

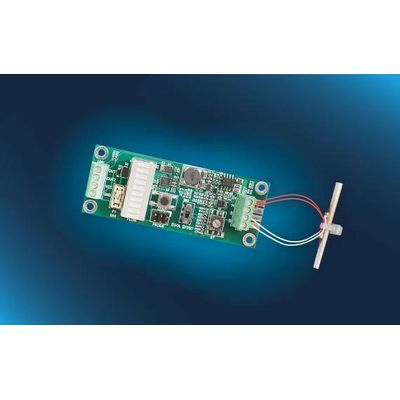

• Product Name: Flow Eval Board FS/OOL + OOL liquid sensor
• Operating temperature range: -40 °C to +85 °C (module)
• Housing dimensions: 40 x 4 (3.7) mm L x o.D. (i.D)
• Fluidic connection: Tubing with 4 mm inner diameter
• Flow range: 0 to 4 m/s
• Flow channel inner dimensions: Ø 3.7 mm
• Flow channel length: 40.0 mm
• Wetted materials: Stainless Steel 1.4301
• Connection type: PCB connector
• Supply voltage: 5V DC +/-5%
• Output signal: 0 V to 10 V analog
• Product Old code: 160.00026
• Product code: 104021

Accurate, robust and ready-to-use: The compact and corrosion-resistant module is suitable for flow monitoring and leakage detection of various liquids.

Suitable for a wide variety of applications from cooling circuits, dosing pumps, white goods, CIP systems for food industry, agricultural machines, industrial wet vacuum cleaners,  to gear oil supply machines used in metalworking and mining.

This thermal flow module allows  continuous monitor systems responsible for temperature control, pumping, filling or leakage detection. Industrial applications include process control (coolants, lubricants, cleaning solutions), as well as dosing systems (food, life science, agriculture, white goods). A wide dynamic range with high sensitivity at low flowrates make IST`s OOL flow module suitable also for drip detection, including water leakage early warning systems.

• Excellent long-term stability
• Simple linearization
• Insulated wires
• Vibration and temperature shock resistant
• Easy interchangeability
• Customer-specific sensor available upon request
• Small dimensions
