Particles Plus - Model 9300P-OEM -Sensors

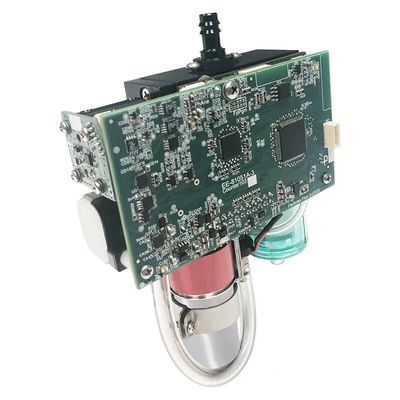

The 9300P-OEM measures up to 30 channels of particle count data from 0.3 to 25.0 µm with a flow rate of 1.2 LPM.The assembly is mounted on a plate for ease of integration. The unit includes a particle sensor, particle counter board, integrated vacuum pump and manifold with pre/post filters, real-time clock/calendar with battery backup, logging and data storage for up to 65,000 sample records, communicates via UART and operates from 7-15 vdc. All Particles Plus counters meet ISO 21501-4 and JIS B9921. The 9300P-OEM ensures compliance with an on-board pulse height analyzer.
Most popular related searches
vacuum pump
exhaust filter
particle counter
particle sensor
flow control
environmental data
vacuum manifold
environmental sample data
air flow monitoring
environmental sampling
- 9300P-OEM: Measures 0.3 µm to 25 µm
- 1.2 LPM flow rate
- Long life laser diode technology
- Measures up to 30 channels of simultaneous data
- Particle concentrations up to 30,000,000 Particles/ft3 @ I 0% coincidence loss
- Internal vacuum pump with manifold and pre/post filters
- Stores up to 65,000 sample records for on-board data redundancy
- User-selectable channel sizes
- Complies with ISO 21501-4 and JIS B9921 standards
- Assembly mounted on back plate for ease of integration
- I year warranty. Extended warranties available.
- Model: 9300P-OEM
- Size Range: 0.3 to 25 µm
- Size Channels: Factory calibrated at 0.3, 0.5, 0. 7, 1.0, 2.5, and 5.0 µm
- Flow Rate / Accuracy: 1.2 LPM / +/-3%
- Concentration Limit: 30,000,000 Particles/ft3 @ 10% coincidence loss
- Aerosol Concentration Range: 0.01 to 20,000 µg/m3
- Light Source: Long life laser diode
- Resolution: 0.00003 µg/m3
- Zero Stability: No appreciable drift
- Calibration: NIST Traceable
- Internal Vacuum Pump: Internal pump with automatic flow control
- Number of Channels: 6 to 30
- Custom Size Channels: Calibration for custom size channels available
- Airflow: Internally monitored
- Alarm: Adjustable built-in alarm
- Communication Modes: Modbus (RTU/ASCII) via 3.3v UART
- Standards: ISO 21501-4 and JIS B9921
- Instrument Calibration: Recommended minimum once every three years
- Dimensions (L x W x H): 3.41" x 4.89” x 1.57” (8.7 cm x 12.4 cm x 4.0 cm) includes inlet
- Weight: 13 oz
- Optional Accessories: Standard exhaust filter, high efficiency exhaust filter
- Data Storage: 65,000 sample records (rotating buffer) with environmental data
- Sample Time: 1 second to 99 hours
- Power: 7 - 15 Vdc (< 2 watts max)
- Operating Conditions: 41º to 104ºF (5º to 40ºC) / 20% to 95% non-condensing RH
- Storage Conditions: 32° - 122°F (0° - 50°C) / < 98% non-condensing RH
- Warranty: 1 year limited warranty. Extended warranties available.
