Sensortechnik Meinsberg - Model LM3000 -PC Laboratory Multi-Parameter System

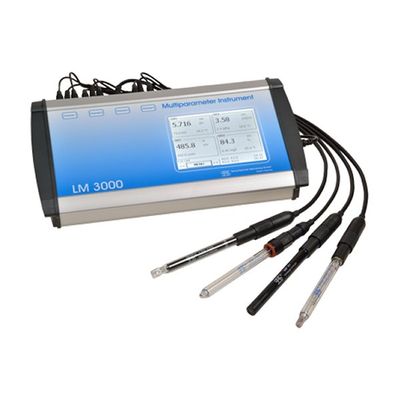

The multiparameter laboratory measuring instrument LM3000 is the complete solution for the tasks of measurement, control and regulation in the laboratory and technical center. Up to 4 internal measurement modules can determine any combination of pH, redox potential, ISE, conductivity, dissolved oxygen, chlorine, temperature and other parameters. This is based on a modular system structure that links the device components via a bus connection.
Most popular related searches
pH/redox
oxygen concentrator
laboratory system
pH/ORP/conductivity
chlorination
multiparameter monitoring
laboratory instrument
dissolved oxygen monitoring
burette
autosampling
- Measurement of pH/ISE/mV, conductivity, chlorine and dissolved oxygen
- Up to 4 measurement modules (inputs) in a variety of configurations
- PC software with extensive operating functions
- Coupling of autosampler and burettes for dosing and automated measurements
- Virtual channels to calculate different parameters from the measured value
- Logbook, i. e. documentation of setting changes
- Plain text menu
- 5.7” RGB TFT display with touch control
- Special electrode test for pH
- Current outputs for each parameter
- Additional modules for current output possible
- Timer function
- Alarm/limit value function
- 2 PID regulators
- Data storage and data recording
- Data transfer with RS232/USB or Ethernet
- Access control by password
Measuring parameters
- pH / redox potential (ORP)
- conductivity
- dissolved oxygen concentration
- ion concentration
- temperature and more
- automatically with Pt 1000
PC interface
- USB, Ethernet
- 12 ... 24 V AC/DC plug-in mains unit
- -10 ... 50 °C
Enclosure
- aluminum console housing
- protection IP 41
- 345x73x170 mm (WxHxD )
- 2 x 4 mm Banana plug / BNC plug
