Sensotec - Sondas Multiparamétricas Device

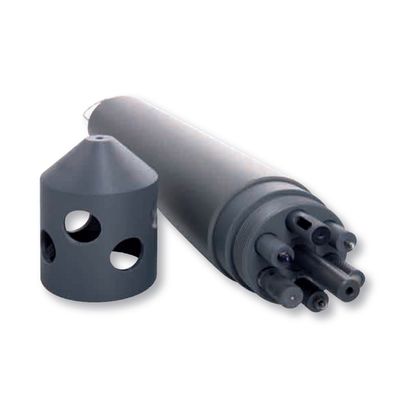

Compact immersion probes for application in tanks, reservoirs, oceanography, etc. They include various built-in sensors allowing measurement of up to 7 parameters. The standard measures are: Depth, temperature, PH, conductivity, ORP, dissolved oxygen, and optionally turbidity. Sumergibles up to 350 m depth (opcionally up to 100 m for oceanography appications) Changeable sensors.Conunication RS485 or RS232C. They may have datalogger for data acquisition. The registered values are: sensor measured values, code SFW, battery level, memory status, time and date, programming of the acquisition. The standard models from our represented BC-Electronics are: SA 8060, SA 8065, SA8145 y SA 8345.
The relative pressure measures the pressure of a point with respect to the atmospheric pressure (regardless of what this is).
Its operating principle is a bellows or membrane system that deforms when it receives pressure acting on the microswitch.
Sensotec Instruments has REGULAUTO pressure switches manufactured by Bourdon Sedeme, currently BAUMER. The most common models are the RP2N, RP2Y, RP2E, and the RPP series.
Pressure switches can have different configurations or options such as:
Microswitch type. Depending on the sensitivity, cutting capacity, number of contacts (one, two independent or two simultaneous), operation (SPDT, SPST, etc.), hermetic contacts, gold-plated, etc.
Deviation. It is equivalent to the “hysteresis” of the pressure switch and can be fixed or adjustable.
Particular equipment: Tropicalized versions, ATEX Exia and Exd approval, nuclear version, etc.
The differential pressure indicates the pressure difference between two intakes regardless of what the line or static pressure is.
Sensotec Instruments has REGULAUTO pressure switches manufactured by Bourdon Sedeme, currently BAUMER. The most common models are RDDP and RDPN.
Pressure switches can have different configurations or options such as:
Microswitch type. Depending on the sensitivity, cutting capacity, number of contacts (one, two independent or two simultaneous), operation (SPDT, SPST, etc.), hermetic contacts, gold-plated, etc.
Deviation. It is equivalent to the “hysteresis” of the pressure switch and can be fixed or adjustable.
Particular equipment: Tropicalized versions, ATEX Exia and Exd approval, nuclear version, etc.
