Sensotec - Turbidity Measurement Systems

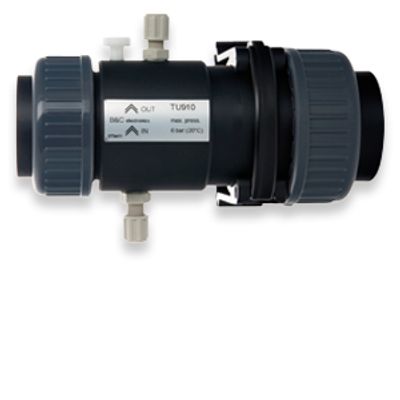

Turbidity measurement systems from our represented BC-electronics enables to measure both by immersion or directly on pipes. The system may have the following components: Controller TU7685 for probe connection, amplification and conversion of measurement, visualization and control of self-cleaning (optional). Turbidity sensor model TU810. Measurement up to 4000 NTU (NUT/mg/ppm). Amplified sensor for remote installation. Output 4-20 mA.  Sumergible or for installation in line. Pressure max. 6 bar. Nephelometric measurement system by infrared light. With self-cleaning and fixing screw for aplicación sumergida. Sampling autonomous cell TU910 for bypass connection in pipe. Pressure max. 6 bar. Fitting connection ¼” o 4 x 6 mm PVC tubes.
