SenSpot - Wireless Displacement / Crack Meter
Displacement / Crack Meter SenSpot provides an easy to install, scalable solution for distributed structural integrity monitoring. Resensys SenSpot technology offers a high performance method for large-scale sensing, wireless synchronization, and ultra-energy efficient wireless communication. SenSpot is designed to operate maintenance-free for more than a decade. After installation, SenSpot does not need calibration, battery replacement, or any other maintenance during its entire service life. Due to small size and light weight, adhesive-mount SenSpot™ sensors can be applied easily to as many critical spots on a structure as needed, with minimal installation effort. Displacement / Crack Meter SenSpot™ can be used for measuring the progress of the existing cracks in a structure. This device has a sliding element which moves with displacement of structure or growth of a crack.
10+ Years Battery Life
- without battery replacement
High Precision
- 0.01 mm or 0.4 mil resolution
Easy Installation
- self-adhesive(e.g. steel)/
- flange-mount(e.g. concrete)
Long Wireless Range
- 1 km free space
Quick Testing Available
- easy to reuse in other places
Wide Working Temperature
- -40 to +65°C (-40 °F to +150°F)
- Monitors expansion joints
- Monitors activity / propagation of existing cracks
- Monitors movement
- Long lifetime: minimum expected life without battery replacement 10 years
- Lightweight: about 147 g (5.19 oz.)
- Wireless transmitter: 120 g (4.23 oz.)
- Cable (1ft): 10 g (0.35oz.)
- Displacement sensing element: 100 g (3.5 oz.)
- Easy mounting:
- Self-adhesive, no drilling is required (e.g. steel)
- Flange-mount, drilling is required (e.g. concrete)
- Quick installation, 1-2 minutes
- High accuracy: 0.1mm resolution
- Wide working temperature: -40 to +65°C (-40 °F to +150°F)
- Long communication range: 1.0km free space
- Small size:

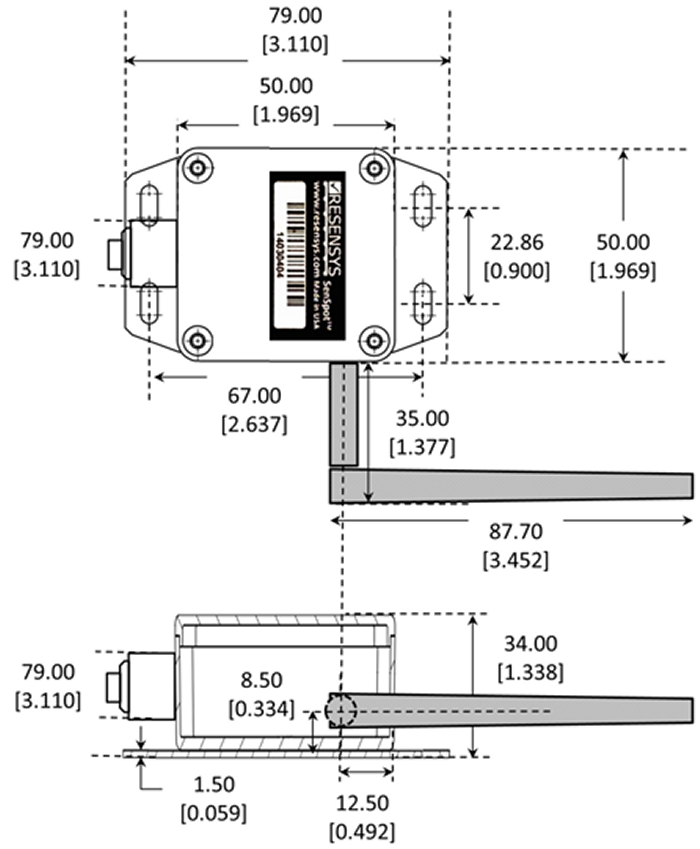

- Wireless transmitter: 50mm (1.96”) x 50mm (1.96”) x 34mm (1.34”)

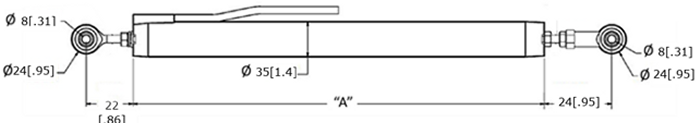

- Crack Meter Sensor: 79/104/129/154mm (1/2/3/4”) x 22mm (0.9”) x 22mm (0.9”)
- Complementary data collected: temperature, battery voltage, etc.
