SenSpot - Wireless Strain Gauge

10+ Years Battery Life

• without battery replacement

High Precision

• 1-µStrain resolution

Easy Installation

• self-adhesive(e.g. steel)/
• flange-mount(e.g. concrete)

Long Wireless Range

• 1 km free space

Quick Testing Available

• easy to reuse in other places

High Sampling Option

• record unusual strain event

High sampling rate instant data transmission triggered by strain spikes:

• A balance between power consumption and performance.
• Perfect for detecting event and recording the waveform of a sudden strain change.
• The triggering threshold is adjustable from 16µStrain to 512µStrain; the sampling rate can be changed from 10ms to 200ms

• Long- term and continuous monitoring of strain (stress).
• Detecting short-lived and transient high-strain events, e.g., caused by fast moving trucks on highway bridges or by turbulence on airframes.
• Fatigue awareness, fatigue life analysis (remaining useful life estimation).
• Fast, easy-to-install adhesive mount.
• Examples applications:
• Highway bridges
• Airframes
• Pipelines
• Machines, cranes, etc.
• Truck tests, bridge load rating

• Long lifetime: minimum expected life without battery replacement 10 years
• Lightweight: about 147 g (5.19 oz.)
• Wireless transmitter: 120 g (4.23 oz.)
• Cable (1ft): 10 g (0.35oz.)
• Strain sensing element: 17 g (0.6 oz.)
• Easy mounting:
• Self-adhesive, no drilling is required (e.g. steel)
• Flange-mount, drilling is required (e.g. concrete)
• Quick installation, 1-2 minutes
• High accuracy: 1-µStrain resolution
• Wide working temperature: -40 to +65°C (-40 °F to +150°F)
• Long communication range: 1.0km free space

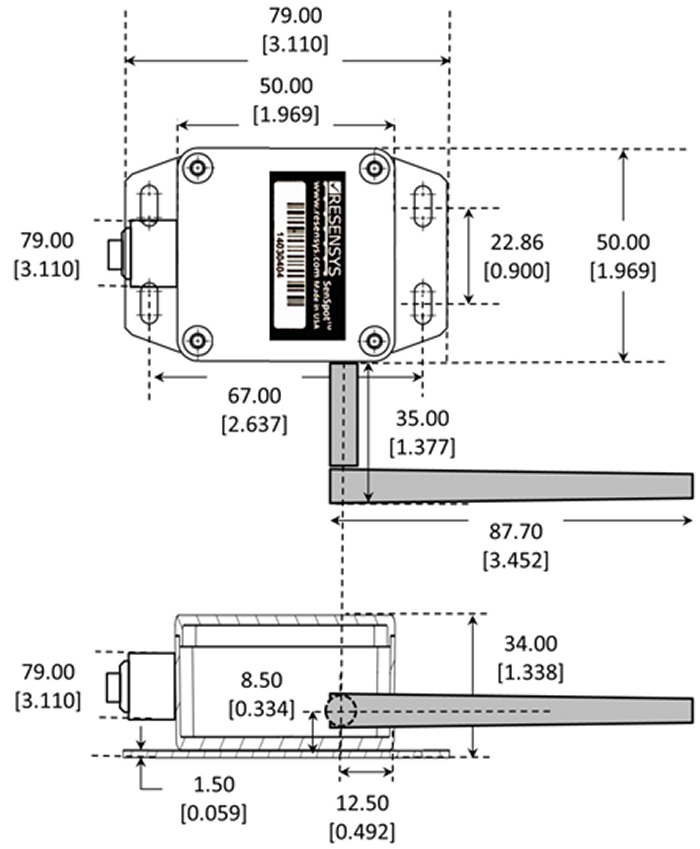

• Small size:
• Wireless transmitter: 50mm (1.96”) x 50mm (1.96”) x 34mm (1.34”)
• Strain Gauge sensor: 76.2mm (3”) x 33.4mm (1.30”) x 10mm (0.4”)

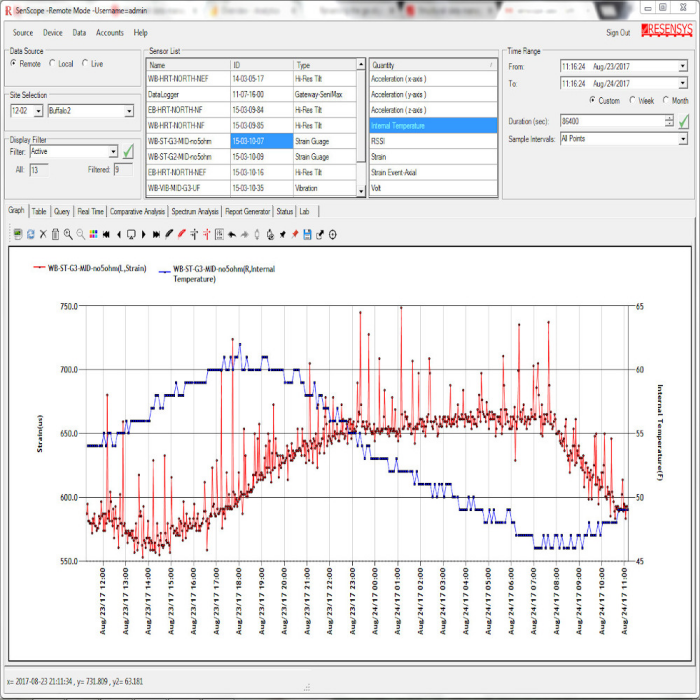

• Complementary data collected: temperature, battery voltage, etc.
