Sentec

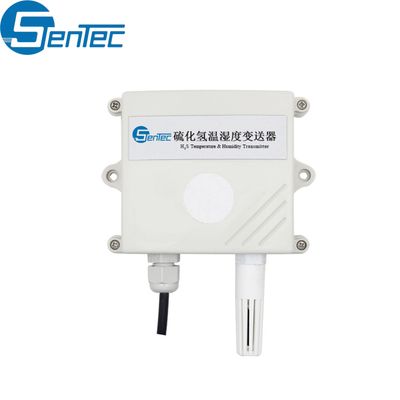

SENTEC - Model SEM323 -Wall mounted hydrogen sulfide temperature and humidity transmitter
FromSentec
Power supply
10~30VDC (0~10V type only supply 24VDC)
Output signal
RS485,4~20mA,0~5V,0~10V
Range
0~100ppm…500ppm
Accuracy
±10%FS
Resolution
1ppm
Power consumption
RS485: 0.12W, Analog output: 0.25W
Range
Temperature: -40℃~+80℃
Humidity: 0~100%RH
Accuracy
Temperature: ±0.5℃
Humidity: ±3%RH
Working environment
-20℃~+50℃, 15%RH~90%RH
Pressure range
Standard atmospheric pressure: ±10%
Stability (month)
<2%
Ammonia zero drift (-20~40℃)
≤0.2ppm
Repeatability
<2% output value
Working life
≥24 monthsMost popular related searches
