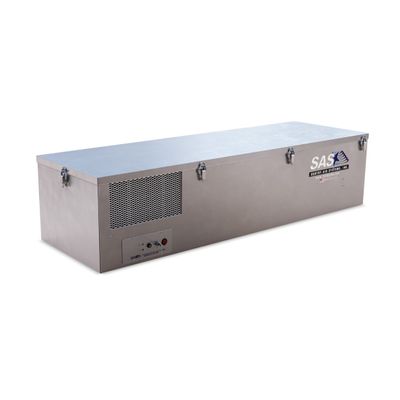

Sentry Air Systems - Model GK-UVC400 -Germ Killer™ UVC 400 - Ambient Air UV Purifier

SHARE
The Germ Killer™ UV-C 400 Air Sanitizer combines powerful airflow and effective UV-C light to aid in sanitizing air. This system may help reduce disease transmission in public places such as hospitals, open workplaces, doctors’ offices, dental offices, schools, nursing homes, disease testing centers, and more. Also, the Germ Killer can be used as an aid to reduce airborne pathogens in medical or biological laboratories. The system’s UV lamps emit the most effective wavelength of UV-C light – 254 nm – to help inactivate the DNA or RNA of microorganisms reducing the reproduction of viruses, bacteria, and fungi.
Most popular related searches
UV-C light
ambient air
UV-C air
ultraviolet lamp
light sensor
air sanitation
air sanitizing
air pathogen
laboratory testing
UV-C sensor
  • Doctor’s Offices
  • Waiting Rooms
  • Dental Offices
  • Conference Rooms
  • Classrooms
  • Forensic Labs
  • Medical/Biology Labs
  • Nursing Homes
  • Disease Testing Centers
  • Open Workplaces
  • Stores
  • Other Populated Areas

  • Includes: (2) UV-C high-wattage lamps, (2) washable pre-filters, adjustable airflow control, and UV-C light sensor with LED lights
  • Two high-intensity UV-C light bulbs help deactivate microorganisms by damaging the DNA/RNA to reduce the reproduction of bacteria, viruses, and fungi
  • Dual inlets feature electrostatic cleanable pre-filters to remove most of the large particles aiding in reducing particle build-up on the bulbs and reflective surfaces in order to help prevent a reduction in effectiveness
  • UV-C light cabinet with light leak reduction design features
  • Passed 3rd party lab testing for UV-C and ozone readings
  • A safety interlock helps prevent the unit from working if the lid or filters are not in place
  • Reflective surfaces in the disinfection area increase the irradiance of the UV-C light and help improve efficacy
  • A light sensor and LED lights indicate if the unit is supplying sufficient UV-C light to improve efficiency and reduce particle build-up on the light bulbs

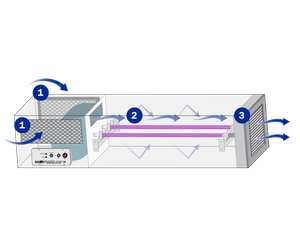

  1. A strong and quiet fan pulls airborne microorganisms and ambient air through the dual electrostatic pre-filters, capturing most of the medium to large particles. These pre-filters help reduce the amount of larger particles entering the system in order to help prevent a reduction in the overall effectiveness of the system.
  2. The air goes through the fan and enters the UV-C light chamber. Two UV lamps emit UV-C light to help disinfect the air by aiding in deactivating airborne microorganisms. This chamber has reflective surfaces to help improve the irradiance of the UV light and efficacy.
  3. Lastly, the air exits through an innovative patent pending light-shielding plenum and adjustable directional louvers that help reduce UV-C light leaks while minimally affecting the air pressure.
  • Base Unit Dimensions
    • Length: 53”
    • Width: 17”
    • Height: 12.5”
  • Cabinet Material: Stainless Steel
  • Weight: Approx. 88.5 lbs
  • Air Volume (approximately)
    • High: up to 450 CFM
    • Medium: 375 CFM
    • Low: 300 CFM
  • Mounting Configurations: Wall Mount, Ceiling, or Portable on Cart
  • Electrical: 115V/1/60Hz, 2.2 amps, 8’ grounded power cord with NEMA 5-15P plug
  • Sound Level (3’ from inlet)
    • High: Approx. 56 dba
    • Low: Approx. 49 dba
  • Filters: Black Polypropylene Washable Pre-filters
  • Limited Warranty: Limited one-year warranty from the date of shipment on defects due to materials or workmanship for fan, ballast, and electrical. The warranty does not cover lamps.
  • Patent: Pending
