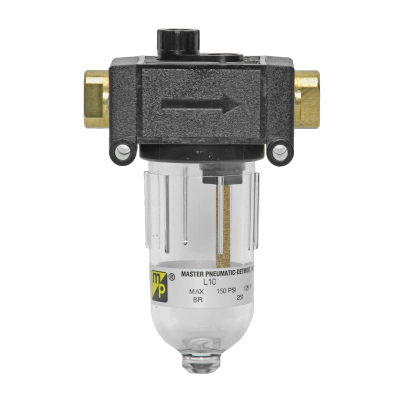

Master Pneumatic - Model L10 -Sentry Modular Wick-feed Lubricator 1/8 and 1/4

The L10 Sentry Modular Wick-Feed Lubricator offers precise lubrication designed for compressed air applications. Its modular assembly allows easy configuration with either threaded ports or quick-connect fittings to accommodate tubing up to 10 mm in diameter. The lubricator features a wick-feed design and is constructed with durable materials like acetal for the body and a 2-ounce polycarbonate plastic bowl, with an optional aluminum bowl for increased robustness. It operates in ambient and media temperatures ranging from 40° to 125°F and can handle a maximum inlet pressure of 150 psig. The external oil adjustment feature allows for precise control without requiring a shutdown. This lubricator is compatible with NPTF port threads, with BSPP threads available as an option. The seals used are made from Nitrile, ensuring durability and reliability under various conditions, making it suitable for industrial use where consistent and reliable lubrication is needed.
