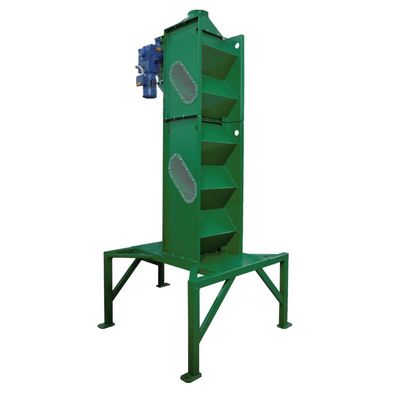

SMF PRODECOLOGIA - Model SLF -Separator of light fraction SLF

Light fraction separator SLF is used:


• for dedusting and removal of films from crushed PET bottles, PVC windows, cables, electronic wastes and mixtures of other plastics in the technologies of recycling of secondary raw materials;

• for scavenging and removal of lamellar minerals in dry technologies of mineral processing, for dedusting of raw materials in the manufacture of building materials.

• Cable recycling
• Glass and porcelain industry
• Municipal engineering
• Processing of plastic waste
• Recycling of household appliances
• WEEE and PCB's recycling
• WEEE recycling

The product is fed into a zigzag-shaped working channel where the upward airflow created by the fan transforms small particles, films and low density particles into suspended state. These particles head along with air into a cyclone where they are settled into a light fraction receiver.
The flow of air from the cyclone is sent to fine-purification filters where the remains of the light product fraction are removed and the air is cleaned of dust.
Large product particles slide downward on the lateral sloping walls of the separator working channel, repeatedly cleaned by the air flow in each section and sent to the receiver of the heavy fraction.
