Produced Water Treatment is now more important than ever due to increasing environmental legislation. The current OSPAR limit is 30 ppm making it vital to employ efficient and reliable methods to meet waste reduction and minimisation targets.
An Industry-Proven Produced Water TreatmentThe SepSORB® range is an industry-proven solution developed by Separo`s Wastewater Treatment Services (WTS) Division to help clients lower the hydrocarbon levels in their produced water. The system is capable of lowering discharge levels to below 30ppm in a single pass with results below 5ppm being achieved in the field.
- No media handling.
- Plug & play system.
- Water treated at source.
- System can be scaled up to suit client requirements.
- Suitable for use with OIW levels in excess of 1000 ppm.
- SepSORB® filter media is recyclable.
- Carbon footprint reduction.

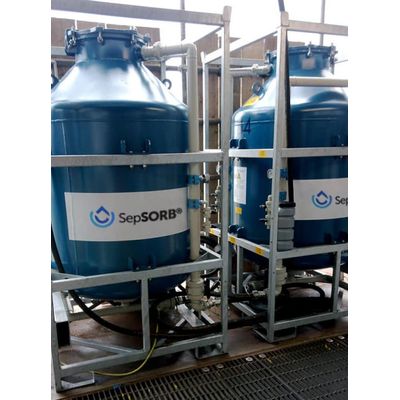

Our range of SepSORB® vessels provides the flexibility to handle any flow rate. Our smaller vessel is capable of handling 12 cubic metres an hour, and our larger model can handle 20 cubic metres an hour. However, we can also combine vessels and run them in parallel to handle higher flow rates as required.
Purpose-Built For Offshore Platforms
The smaller units measure 1.2m2 and the next size up are 1.6m2. When combined on site the vessels require a remarkably small footprint of just 15m2 in total.
The saturation weight of each small unit is approximately 2.5 tonnes. A typical installation of two SepSORB® units, plus a pump and pre-screening units would weigh 7-10 tonnes in total. The larger units weigh 4.7 tonnes when saturated and in use, so installed weight is around 50 tonnes in total.
