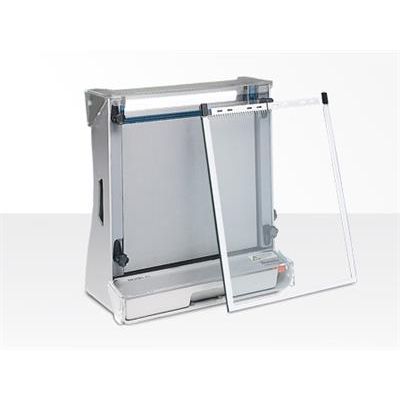

Biometra - Model S2 -Sequencing Gel Electrophoresis System

• Produces a 30 cm x 40 cm gel that fits easily on a standard
  14 in x 17 in X-ray film
• Integral aluminum plate for even heat distribution to minimise band curvation (“smiling”)
• Removable lower buffer tray with a separate chamber for collecting the buffer from the upper reservoir, eliminating the need to move the apparatus for buffer disposal
• Built-in integral clamps hold the gel in place
• Unique gasket sealing system ensures leak-free operation without grease or notched plates
• Safety interlock lids
• Additional combs and apparatus components available separately

• Standard system with large-sized gel
• Produces a 30 cm x 40 cm gel that fits easily on a standard 14 in x 17 in X-ray film

Model S2

• Dimensions (W x D x H): 42.2 x 21.6 x 44.5 cm
• Electrode material: platinum
• Gel dimensions (W x D): 31.0 x 38.5 cm
• Maximum gel thickness: 1.6 mm
• Working buffer volume: 1 L
• Voltage Range: 2000 V
• Current Range: 0-125 mA, 0.5 A max.
• Construction: Flame retardant ABS, acrylic, aluminum, silicone
• Operating Temperature Range: 4 – 30 °C (non-condensing atmosphere)
• Weight: 6.32 kg
