Seren - Model R601 -600W Radio Frequency Generator for Industrial Applications
Forward Power Output: 600 Watts. Frequency (specify when ordering): 1.7-2.1 MHz, 13.56 MHz, 27.12 MHz, 40.68 MHz. Forward Power Accuracy: +/- 2%. Harmonics: -50 dBc.
Most popular related searches
- Input Power: 100-240VAC, 47-63Hz, Single Phase (specify 120V or 240V power cord when ordering)
- Output Connector: Type "N" Female
- Interface Connectors: Serial: DB-9 Female; Analog: DB-25 Female
- Pulsing: 0 -100 % Duty Cycle, 50 u.s minimum pulse width
- Cooling: Forced Air, 123 CFM (59.05 L/s)
- CEX Input -(BNC): 5V Peak-to-Peak, nominal sine wave
- CEX Output-(BNC): 6V Peak-to-Peak, nominal sine wave
- SEMI-Third Party: SEMI S2, SEMI S8
- EMC & Safety - Third Party: CE Mark

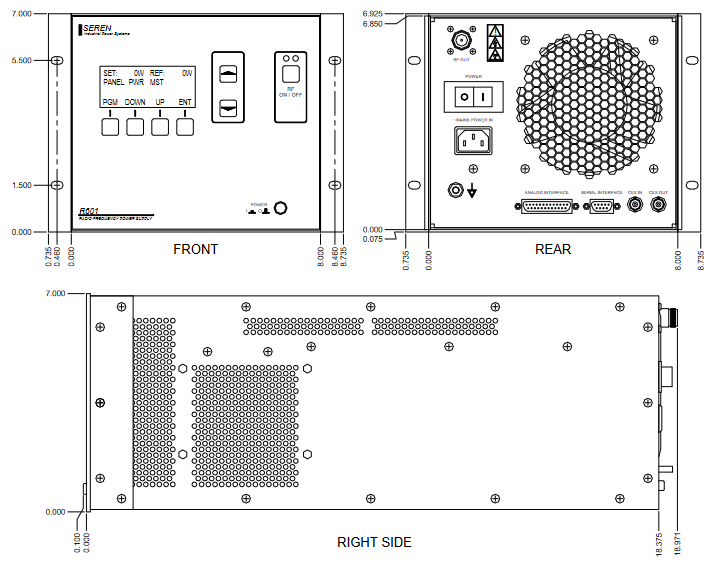

- Dimensions -(H,W,D): 7.00" x 9.50" x 18.38" (17.78 x 24.13 x 46.68 cm)
- Weight: 37 Lbs (16.8 Kg)
