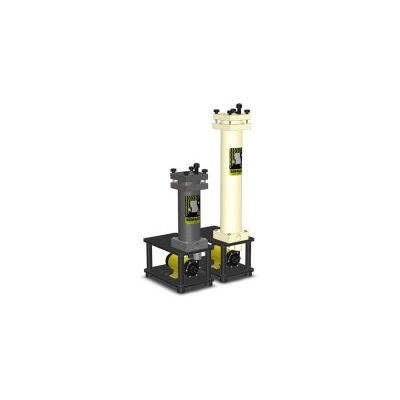

SERFILCO - Model Labmaster LX -Filtration System

The SERFILCO Labmaster `LX` Series is engineered to provide reliable, high performance filtration in a small package.

These compact pump and filter systems are popular for use on small tank production in the electronics industry and in precious metal plating, as well as for laboratory and pilot plant runs.

Featuring SERFILCO`s non-metallic, leakproof Series `X` magnetic coupled pumps and industry proven Series `L` filter chambers, these systems provide high flow and high turnover rates, assuring continuous particle removal. Labmaster `LX` systems are available with or without a carbon or resin purification chamber.

• Seal-less magnetic drive pumps
  Labmaster `LX` filtration systems feature highly efficient seal-less magnetic coupled pumps for total solution containment and reliable performance to 1.3 S.G. The pumps are available in PP or PVDF.
• Filter chamber
  Constructed of clear PVC, CPVC, PP or PVDF to ensure chemical and temperature compatibility in a wide range of applications.The standard chamber accepts double open end (DOE) depth wound, pleated, melt blown, cleanable sleeve and carbon cartridges. A 222 "O"-ring seat for single open end (SOE) cartridges is optional.
• Simple carbon or resin treatment
  The systems are also available with optional purification chambers in polypropylene, PVC or CPVC with reusable ABS canister offering a low-cost, but effective method of continuously or periodically removing organic impurities from plating baths and other chemical solutions.

Standard Labmaster `LX` systems include:

• Series `X` magnetic coupled pump good to 1.3 S.G.
• Series `L` filter chamber for 10", 20" or 30" cartridges
• Corrosion resistant PVC hooded mounting base
• EPDM elastomers standard
• SS external fasteners
• PP vent valve or PVDF vent plug
• Priming bulb and suction strainer
• Vinyl suction and discharge hoses, 6 ft. x 5/8" each (wire reinforced with CPVC systems, nylon reinforced with others, hose not included with PVDF)
