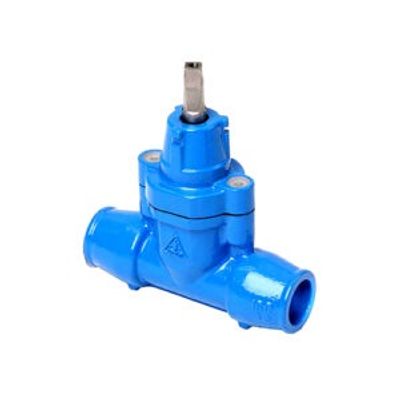

Cast Iron Armature - Model 314 Series -Service Valve

The service valves are used as closing devices installed on polyethylene pipelines carrying water and non-aggressive fluids with pressure PN16 and Tmax 70°C. The closing device is EPDM rubber wedge. The product is certified for contact with drinking water. Nominal torque moment at closing-opening is 50 Nm and maximum - 100 Nm. The valves from this series are cost effective and time saving as they do not require any special instrument for installation.
