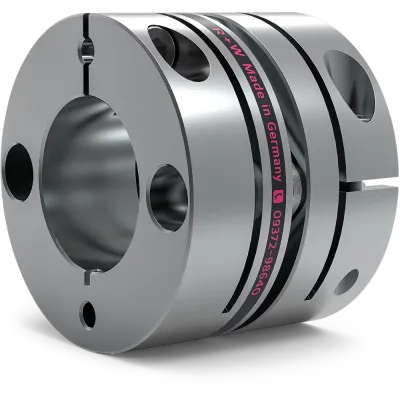

R+W - Model SCL2 S -Servo Disc Coupling with Clamping Hub - Single Flex Design
25 - 100 Nm | For angular and axial misalignment only. High torsonal stiffness, Low moment of inertia, backlash free,
- Temperature range
- -30 °C to +130 °C (-22 °F to +266 °F)
- Design
- Two precision machined coupling hubs
- Precision spacer mounted to the disc packs by means of high strength screws and spacers
- Also available as split clamping hub
- Material
- Disc packs: highly elastic steel
- Hubs: aluminium
- Spacer: aluminium
- Service life
- R+W bellows couplings are fatigue resistant and wear free for an infinite service life, as long as the technical limits are not exceeded
- Fit clearance
- Overall shaft / hub clearance of 0.01 – 0.05 mm
- Special solutions
- Possible upon request
- ATEX (Optional)
- Possible upon request
