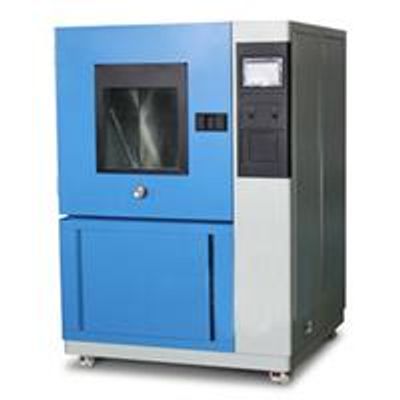

Morningtest - Model MT-SDC -Settling Dust Chamber

Description
Settling dust chamber is used to check the protection against solid foreign objects to verify the degrees of protection IP5X "Dust-protected" and IP6X "Dust-tight."

Manufactured from rectangular steel tubes and sheet steel, with 4 lockable dolly`s (wheels), control cabinet with control and monitoring elements located on the right-hand side, voltages and/or frequencies according to customer needs.

The Morningtest settling dust chambers provide a ready-made solution to common dust test standards for automotive and electronic-cabinet requirements.

These units can be used with talcum powder, and optional reach-in glove ports allow rotating the test sample without opening the door.

Standard Features

• Stainless steel interior
• Consists of high pressure circulating fan to meet the environmental requirements of dust and powder
• Control function
• Power switch
• Switch for Circulation Pump
• Timer 1 to control the On/Off condition of the circulation pump
• Vibrator switch
• Timer 2 to control the On/Off condition of the vibrator
• Circulation Pump Overload
• Door open power off
• 50mm cable access port soft plug
• Specimen holder: 1 level (Stainless steel)
• Special circumferential rubber seals for optimum sealing of the test chamber

Optional Accessories

• Acrylic glass door with with a window wiper fitted to the front of the test chamber
• Glove port allow rotating the test sample without opening the door
