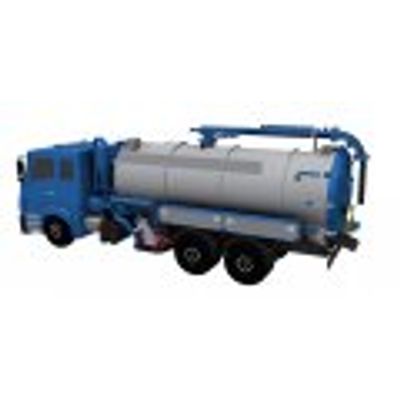

TDI Engineering and Machinery - Model VB Series -Sewage Suction Truck
Vacuum trucks in the VB Series by TDI Engineering and Machinery are designed for robust performance in removing and transporting sand, stones, bottles, cans, grease, sludge, and other debris from sanitary sewers or drain lines. The core functionality derives from a powerful, positive displacement vacuum pump or blower that generates intense suction. The vacuum units come equipped with a cylindrical debris tank to collect extracted materials, and can be customized extensively with hydraulic and pneumatic components to meet specific operational requirements. These trucks can be mounted on two, three, or four-axle chassis, offering flexibility in tank volumes and configurations. Ideal for both sewer system maintenance and broader industrial vacuum applications, the VB Series represents a versatile solution tailored to meet diverse disposal and industrial operational needs.
Vacuum truck is used for removing and transporting sand, stones, bottles, cans, grease, sludge and other debris from sanitary sewer and/or drain lines by strong suction action which is created by a positive displacement vacuum pump or a blower . Besides cleaning of sanitary sewer systems, vacuum trucks also provide efficient solutions to industrial vacuum requirements . Although vacuum unit is basically equipped with a vacuum pump and a cylindrical debris tank for collecting all materials coming from the sewer system , it’s possible to obtain versatility by adding hydraulic and pneumatic components so that it fulfills the requirement of specific operations.
Sewage vacuum equipment can be constructed on different kind of truck chassis of two, three, or four axles with the following tank volumes:
- Approx. 9.000 lt. with load capacity of 18t trucks
- Approx. 16.000 lt. with load capacity of 26t trucks
- Approx. 20.000 lt. with load capacity of 32t trucks
- Vacuum cleaning of drain lines
- Vacuum cleaning of sewer manholes
- High flow , continuous industrial vacuum cleaning
- Dusty and tiny solids’ vacuum loading
- Pond and catch basin cleaning
- Sludge pools vacuum cleaning
- Oil and grease separation pools cleaning
- Produced of St37 ( EN10025 – S235JR ) or St52 ( EN10025 – S355 J2G3)
- Cylindrical single chamber tank ( sludge tank )
- Positive displacement blower or liquid ring vacuum pump ( 900 – 6000 m³/h)
- Cardan-shaft or v-belt driven vacuum pump
- 3 exit split-shaft PTO or truck PTO
- Vacuum capacity of at least %90 ( -700 mbar)
- Hydraulically driven suction hose boom
- Hydraulic tank lifting
- Forced emptying via vacuum pump ( in pressure mode)
- Manual or hydraulic rear door locking
- Hydraulically opening, full size rear door
- Safety and filtering systems for vacuum system
