Sewerin - Model SPE -Sewerin Test Sets for Safety Testing and Adjustment of Measuring Devices
Test set SPE for testing and adjustment of SEWERIN measuring devices. With regard to operational safety, test technology continues to grow in importance. The DVGW (German Technical and Scientific Association for Gas and Water) Code of Practice G 465-4 describes the tests required for various device classes. The Sewerin test sets take these circumstances into account. For example, all test sets have a manometer for displaying can pressure and an improved can connection to make handling easier. An extensive range of accessories, e.g. test gas cans, results in a wide range of applications.

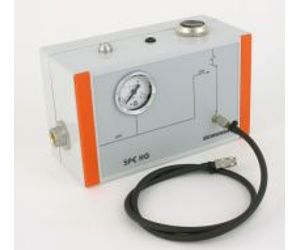

Test set SPE HG to check and adjust the sensitivity of SEWERIN gas warning instruments within ppm, %LEL and vol.% range
- pre-adjusted test gas flow of 30 l/h
- connection for all SEWERIN test gas cans
- manometer (0 – 16 bar) for the display of test gas can´s pressure
- the test head HG4 will be required

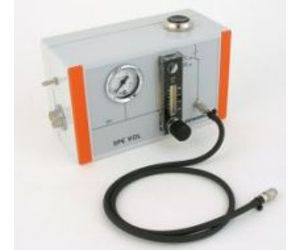

Test set SPE VOL to check and adjust the sensitivity for %LEL and vol.% range and to check pump capacity
- connection for all SEWERIN test gas cans
- manometer (0 - 16 bar) for the display of test gas can´s pressure
- flowmeter (0 - 80 l/h)
Test set SPE ppm to check and adjust the sensitivity with 10 ppm CH4
- with integrated conditioner to moisten test gases
- manometer (0 - 16 bar) to display test gas can´s pressure
- flowmeter (0 - 80 l/h)

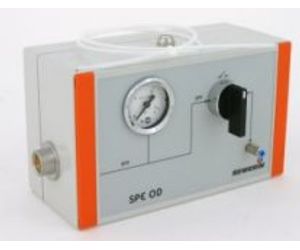

Test set SPE OD to check and adjust the sensor´s sensitivity with odorants (THT or TBM)
- manometer (0 – 16 bar) to display test gas can´s pressure
- suitable for EX-TEC OD 4

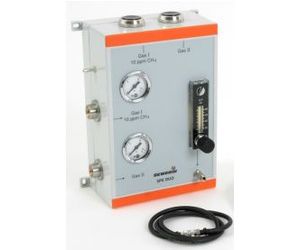

Test set SPE DUO to check and adjust the sensitivity and pump capacity
- two connections for simultaneous use of two SEWERIN test gas cans
- first connection for test gas 10 ppm CH4 with integrated conditioner
- second connection for all other test gases (vol. % and LEL range)
- two manometers (0 - 16 bar) to display the test gas cans` pressures
- flowmeter (0 - 80 l/h)
- wall-mounting possible
- Test gas cans
- Test heads and conditioner
- Connections hoses
- Adapters
