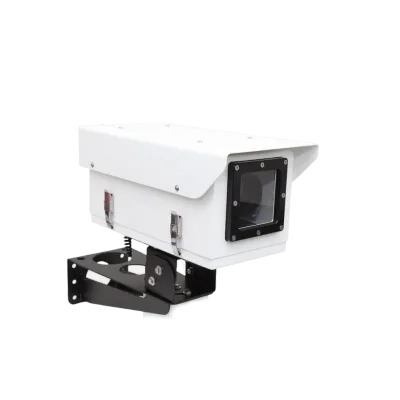

Sexton - Model B-200 -Weatherproof Housing Camera
The Sexton Outdoor B-200 Weatherproof Housing is tailored for securing the Edgertronic High Speed Video camera in demanding environments. Constructed from .080-inch 5052 aluminum, this enclosure offers durability and resilience, suitable for harsh conditions. Standard colors are white and black, with additional colors available upon request. Its design includes a glass window with a thickness of 0.25 inches for optimal camera protection and image clarity. Accompanied by a 316SS stainless steel wall mount, the B-200 housing also supports optional pole mounting. Captive screw latches and stainless steel fasteners ensure a secure fit. Exterior dimensions without mounting extend to 18.5 inches in length, 9.5 inches in width, and 8.75 inches in height, while with wall mount, the housing dimensions change to 23.25 inches in length, 9.5 inches in width, and 18.5 inches in height. Compatible with lenses such as Nikon AF FX NIKKOR 80-200mm, it provides flexibility for various photographic applications.
- Housing Material: .080' thick 5052 aluminum
- Colors: White/black standard; contact for more colors
- Glass window: 1/4' thick
- Wall mount: 3165S stainless steel wall mount included with the housing pole mount is available as an add-on
- Captive screw latches: To secure housing to the base
- Fasteners: All stainless steel
- Exterior dimensions for housing only: 13.5' L i 95' W x 8.7S' H
- Exterior dimensions for housing attached to wall mount: 2325' Lx9.5' Wx 18.5' H
- Interior dimensions to camera mounting plate: 16' L x 7.75' W x 6' H
- Nikon AF FX NIKKOR SO-2COmm f2.8D ED Lens (needs Lens Mount)
- Nikon AF Zoom-NIKKOR 30-2Wmm V2&D ED with TC-14A Teleconverter (needs Lens Mouti:
- Nikon AF-S Zoom-NIKKOR 17-35mm Lens
