Little GiantModel 1-ABS Series -Shallow Pan Condensate Pump

SHARE

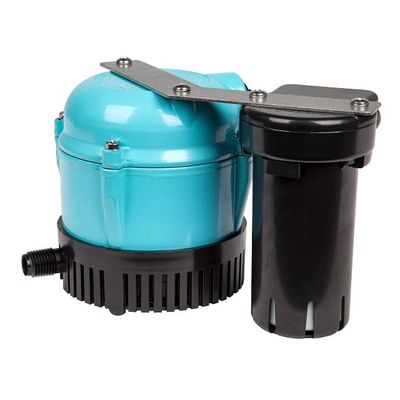

Employing a sealed, submersible pump with sump-type pick-up, the 1-ABS offers low on and off levels and is ideal for in-pan placement for condensate removal. An integrated, unique float switch design assures reliability and security while providing easy access to the float for servicing. Designed for shallow pan tank applications such as in an existing drip tray, the 1-ABS condensate removal pump complements an air conditioner drain pan or reservoir. It can also be used for hydroponic applications such as water circulation in small trays, pans, and flood tables.

Most popular related searches
  • 1/150 hp oil-filled motor
  • Epoxy-coated cast aluminum housing and motor cover
  • Nylon volute
  • Stainless steel shaft with Nitrile shaft seal
  • Advanced mechanical switch
  • Thermal overload protection
  • 1/150 hp oil-filled motor
  • Epoxy-coated cast aluminum housing and motor cover
  • Nylon volute
  • Stainless steel shaft with Nitrile shaft seal
  • Advanced mechanical switch
  • Thermal overload protection
Capacity 205 gph @ 1`
Shut Off 10` (3 m)
Max. Liquid Temp. 120 °F (49 °C)
Discharge 1/4" (6 mm) MNPT
Impeller Nylon
Electrical 115 V, 60 Hz, 1.7 A
230 V, 50/60 Hz, 0.6/0.5 A
Operation Automatic
