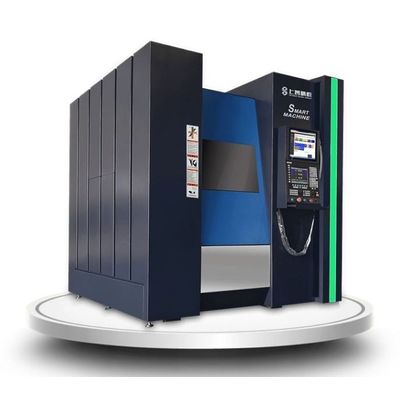

Shangshan - Model S-500V -Graphite Machining Centers Machine
Graphite Machining Centers S-500V: X/Y/Z Travel:550×400×400mm. Max. table load:200kg. Spindle Speed:20000-40000rpm.
Most popular related searches
air cooling system
dust collector control
precision ball
dust collector
carbon fiber
collection bucket
cooling system
lubricant system
compressed air
dust control system
Product features:
- Designed specifically for graphite processing.
- Fully closed-loop control to ensure accuracy.
- Fully sealed protection to protect machine tool components.
- Customizable to your needs.
Processable materials:
- graphite, carbon fiber, ceramics, composites, and other non-metallic materials.
Standard Configuration
- German Siemens CNC system
- German Siemens servo motor
- Spanish Fagor three-axis full-closed loop grating scale (resolution: 0.001mm)
- Taiwan High Precision 8KW BT30 Direct-Coupled Mechanical Spindle (20,000 RPM)
- Graphite-specific full-hood 24T-BT30 tool arm tool magazine
- Graphite-specific full-seal contact tool setter (tool length compensation)
- Taiwan Precision Ball Guide Screws
- NSK precision ball screw special bearings from Japan
- Compressed air cooling system for high-pressure nozzle
- Shangshanjingji 3.7KW graphite-specific dust collector + built-in powder extractor
- Three-axis graphite-specific automatic lubrication system + external oil collection tray
- Built-in double helix automatic powder discharger + external ash collection bucket
- Real-time monitoring system
- Graphite dedicated blow dryer
- Renishaw Online probe
- Renishaw laser tool setter
- Graphite special dust collector
- Control system: Siemens/Fanuc/Syntec (optional)
- Spindle speed: 12000-40000 RPM
- Spindle specifications: BT30/BBT40/BT50/HSKE40/HSKA63
S-500V Parameters: Value
- X/Y/Z Travel: 550×400×400mm
- Table Dimensions: 600×400mm
- Max. Table Load: 200Kg
- Spindle Face to Worktable Height: 130—530mm
- Positioning Accuracy: ±0.005/300mm
- Repeatability: ±0.003/300mm
- Tool Capacity: 24
- Spindle Speed: 20000-40000Rpm
- Moving Speed: 32m-48m/min
- Cutting Speed: 10m-20m/min
- Tool Change Time: 2 seconds
- Dimensions (L/W/H): 2000×2600×2450mm
- Weight: 3600Kg
- Control Method: Fully closed-loop control
