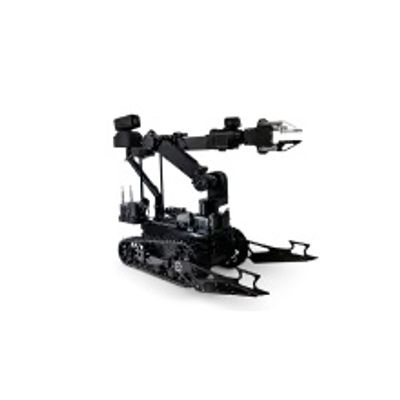

Shark - Model Atrax -Demining Robot

Modern threat environments demand precision, adaptability, and absolute safety. To protect EOD specialists and secure high-risk zones, Shark Robotics developed Atrax : a robust and versatile robot for C-IED and CBRN operations.

Its advanced flipper system allows exceptional mobility across rough or confined terrains, ensuring mission success even in the most challenging conditions. With its modular design, ATRAX can be equipped with jammers, manipulators, and CBRN detection sensors, adapting seamlessly to diverse operational needs. Powered by the Shark Robotics battery, it delivers extended autonomy for long-duration missions, making ATRAX a reliable partner for bomb disposal, counter-IED, and demining operations worldwide.

Patented flippers
Dual-function flippers for stairs and C-IED wire crossing.
Five-axis manipulator arm with wide clamp providing precise remote handling for EOD and C-IED tasks on the Atrax robot

5-axis arm
Motorized arm with 200 mm clamp for precise EOD handling.
Dual-battery power system offering up to six hours of autonomous operation on the Atrax EOD robot

Extended autonomy
Operates up to 6 hours with dual UN38.3 batteries.
Long-range communication link providing up to 750 meters line-of-sight control with mesh relay for Atrax

Long-range comms
Up to 1,000 meter LOS thanks to mesh relay system.
Compact 115 × 48 × 39 cm chassis allowing Atrax to operate in confined and urban spaces

Compact footprint
115 × 48 × 39 cm design for confined urban missions.
Panoramic turret delivering 360-degree day, night and thermal vision for Atrax situational awareness

360° awareness
Day and night imaging via panoramic turret.
Fiber-optic wired control option ensuring resilient communication in jammed or RF-denied environments for the Atrax robot

Wired resilience
Optional fiber-optic kit for RF-denied or jammed zones.
Tool-free modular architecture allowing rapid module changes on the Atrax mission platform

Tool-free modularity
Modules swapped quickly using dedicated mounting points.

• Operational autonomy : 6 h
• Obstacle clearance : 20 cm
• Max slope / side slope : 40° / 30°
• arm lifting capacity : 12 kg bent / 6 kg straight
• Clamp opening : 200 mm
• Arm reach : 1200 mm
• Dimensions (L × W × H) : 111.5 × 48 × 39 cm
• Robot weight (EOD mode) : 75 kg (165 lbs)
• Payload capacity : 50 kg (110 lbs)
• Electric motors : 2 × 200 W + 150 W (flippers)
• Battery pack : 2 × Lithium-ion (UN38.3 certified)
• Battery recharge : 2 h 45
• Control range : ~1,000 m LOS with mesh relay
• Arm cameras : 2 × HD
• Robot lighting : 2280 lm
• Arm lighting : 2 × 380 lm
• Preset arm position : Operator ready
• Ip rating : IP65
