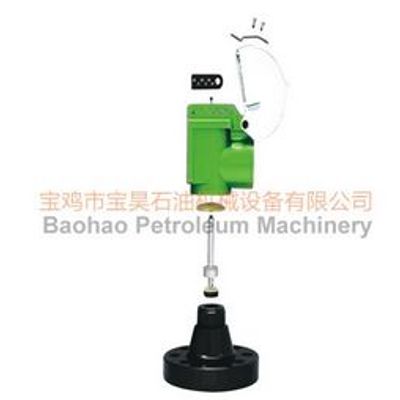

Baohao - Model JA-3 Type -Shear Relief Valve for Mud Pump

Shear pin safety valve can be connected in two ways, one is threaded connection, and the second is flange connection. It is an insurance of mud pump,  before the pump working, according to the cylinder and piston specification determines the rated pressure, the safety valve cover off the shear pin on the clipboard into the pin hole. If the pump head pressure exceeds the rated pressure, shear pin will be cut and mud from the side of the vent valve, play a protective role. The easily damaged parts in the shear pin safety valve are shear pin, piston, piston rod, rubber cushion, etc.
