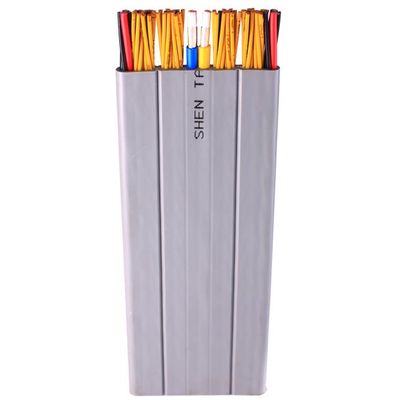

Shen-Tai - Flat Traveling Cable
Application:Flat Elevator Cable is a vital link between the elevator car and controller. In conventional elevators, all signal information is transmitted through the traveling cable.
Most popular related searches
- Size :0.5mm²~2mm², 20 AWG~14 AWG
- Core:3C~60C
- Conductor:Soft Bare Copper
- Insulation:PVC
- Jacket:PVC
- Rated Temperature:60?, 70?
- Rated Voltage:300V, 500V, 600V
- Standard:UL, ST CABLE
Elevator Cable Feature-UL & cUL ETT / UL ETP Approval:
- UL & cUL ETT / UL ETP Approval.
- Elevator Cable Application:ETT Steel Center & Jute Center traveling cable for elevator or lifts.
- ETP single and stranded types, adding Shielded Pairs, Coaxial etc for options.
- Elevator Cable with steel wires for high travelling speed.
Elevator Cable Feature-VDE / TUV / CCC Approval:
- VDE / TUV / CCC Approval, standards: EN 50214, IEC 60227-6, GB/T 5023.6
- Elevator Cable Types: H05VVH6-F, TVVB flat traveling cable for elevators or lifts.
- Elevator Cable with steel wires for high trolley travelling speed.
- Shielded Pairs, Coaxial can be added.
